Ingke Ykku 7309bnl 100 Percent Cross 7499511611a Through Hole Gigabit Poe Rj45 Magjack Connectors - China
price: 0.55 Dollar US$

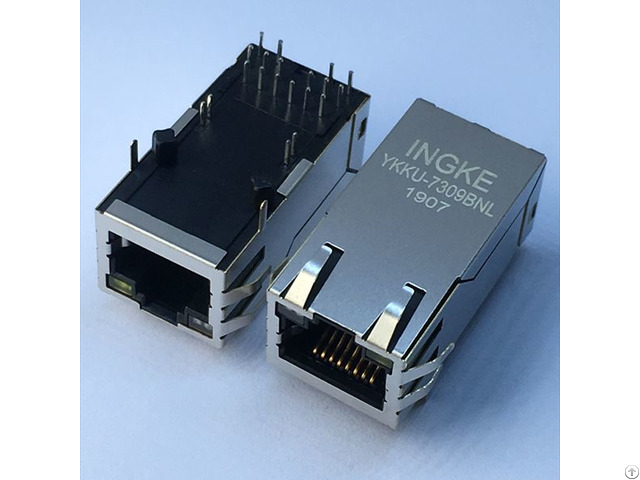

Ingke YKKU-7309BNL 100% cross 7499511611A Through Hole Gigabit POE+ RJ45 Magjack Connectors Part Number: 7499511611A
Made in China: YKKU-7309BNL
Original Manufacturer: Ingke Technology
Supply Ability: 5500K-PCS/Month
Product Category: Modular Connectors / Ethernet Connectors
Packaging: Tray
Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100/10 00 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
LED Color: Green, Orange - Yellow
Number of Cores per Jack: 12
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40℃~85℃
Contact Finish Thickness: 30µin (0.76µm)
Flammability Rating: UL 94 V-0
Shield Material: Copper Ally
Housing Material: Thermoplastic Ingke Technology Mass production of the following models;7499111447 7499151120 7497110616 7499010121A 7499011121A 74990100011A 7499011222A 7499010211A 74990111217 7499010441 74990112116A 749941021 74980111211 7499010122 7498011122 7499111121A 7498011122R 74990111215 7499211121A 7499210121A 7499211125 7498111001 7498111001 7498111001 7499111446 7499111221A
Company Contact:
- Posted By: Ingke Technology Co.,Ltd
- Phone: +8615920079718
- Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China
- Email:
- Website: http://ingketech.net
Published date: February 26, 2019
- Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.
Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.
Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.
Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
