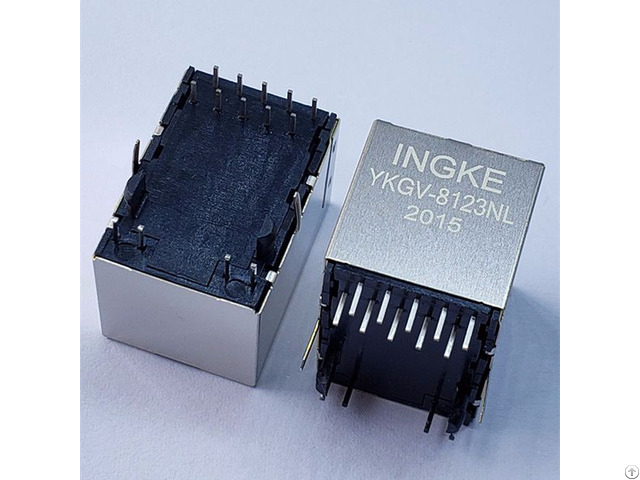

Jd3 0002nl 1 Port Vertical 1000 Base T Rj45 Lan Transformer - China

price: 0.50 Dollar US$

INGKE YKGV-8123NL Direct Substitute JD3-0002NL 1 Port Vertical 1000 Base-T RJ45 LAN Transformer Part Number: JD3-0002NL

Made in China: YKGV-8123NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100/10 00 Base-T, AutoMDIX

Mounting Type: Through Hole

Orientation: Vertical

Termination: Solder

LED Color: Yellow - Green

Number of Cores per Jack: 8

Shielding: Shielded

Features: Board Lock

Tab Direction: User Selectable

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness: 15µin (0.38µm)

Shield Material: Copper Alloy

Housing Material: Thermoplastic


Company Contact:


  • Phone: +8615920079718

  • Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

  • Email: Email


Published date: April 13, 2020

  • Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

    Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

    Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

    Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
