Jxr0 0011nl 1 Port Through Hole 10 100 Base T Tab Down Rj45 Magnetic Modular Jacks - China

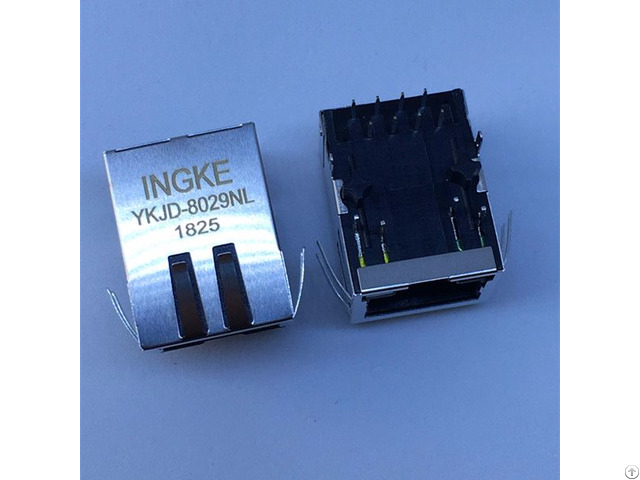

Ingke YKJD-8029NL 100% cross JXR0-0011NL 1 Port Through Hole 10/100 Base-T Tab-Down RJ45 Magnetic Modular Jacks Part Number : JXR0-0011NL

Made in China: YKJD-8029NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-TX, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Yellow

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

J0018D21NL J0026D01BNLJ0033D21 J0035D21B JD2-0010NL J00-0062NL JXD2-0010NL J00-0066NL J0C-0004NL J0C-0004NLT JXD3-0004NL J0026D01 J0048D21M J0073D01B J1012F21RNL JXKM-0013NL J0026D01B J0026D01F J0026D21E J0026D21F J0026D21G J1026F01QNL J0026D21FNL J00-0065NL J0G-0007NL JV011I21NLT

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
