Komeg Programmable Walk In Modular Climatic Chamber For Large Components - China

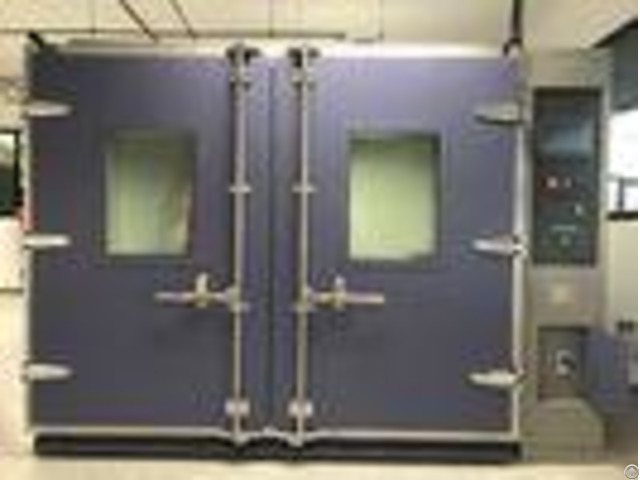

KOMEG Programmable Walk In Modular Climatic Chamber for large components 1 - Walk-In Temperature and Climate Test Chambers KOMEG Walk in climatic test Chamber serves as a test site for large components, assemblies and finished products.

Used for various types of testing such as prototype evaluation, research & development testing, production testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed.

KOMEG manufactures both panel walk-in chambers and solid walk-in chambers and can be configured as temperature chamber or temperature humidity chamber.

2 - Main Technical Parameters - - - - Model | KMH-7392S | Volume | 7392 liter | Interior Dimensions | W 2100 H 1600 D2200 mm | Exterior Dimensions | W 3560 H 2000 D 3250 mm | Safety Devices(standard) | No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | Standard accessories | Sight window*1, cable port ( port50mm ) *1, chamber lamp*1, status indicator | Control System | Balanced Temperature & Humidity Control System | Refrigeration system | Water Cooled | Semi-hermetic compressor, single stage or cascade refrigeration system, | CFC free refrigerant ( HFC-507 and HFC-23 ) | Controller | Panel | 7-inch LCD Touch panel, Chinese or English display selectable | Operation model | Program or fix point running | Memory capacity | 120 programs, 1200steps, all repeat 999 cycles, part repeat 99 cycles | Accuracy | Temp: 0.1% of F.

S 1 digit Humidity: 0.1% of F.

S 1 digit | Input | Temp: pt-100, Humidity: pt-100 or 5V DCV | Comm.

port | RS-232 or RS-485 ( Softawre is option) | Temp.

range | Maximum: 80 C, 120 C; Minimum: -60 C, -50 C, -40 C, -30 C, -20 C, -10 C, 0 C | Humidity Range | 10%, 20%, 30% ~ 95% | Temp.

constancy | 0.5 C | Humidity constancy | 2.5%R.

H | Temp.

uniformity | 2.0 C | Humidity uniformity | 5.0%R.

H | Ambient Temp.

| +5 C+35 C | Wiring method | AC 380 10% 50Hz, 3 phase 4 wires + Ground Wires | Heat up time | +20 C+80 C, Within 60 min | Pull down time | +20 C ~ -55, -40 C, -20 C, -10 C, Within 120 or 90 or 60 min | Interior material | Stainless Steel Plate(SUS 304) | Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) | Insulation material | Rigid polyurethane foam | Door size (mm) | Single wing: W800 x H1800; Double wing: W1600 x H1800; | Note: 1 - We reserve the right to change specifications without prior notice 2 - Customized sizes and configurations available | - - - - 3 - Test condition 4 - Description Flexibility for structure The panels used in our chamber are 4 (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior.

An assembled box is self-supporting.

So that no heavy structural members are required.

Different door sizes, flooring upgrades, access ports, and other modifications are possible.

Widest test range, most customizable 5 - Meet the standard GB-2423.2-2008(IEC68-2-2) Test B: High Temperature Test GJB360.8-2009(MIL-STD.

202 F) High Temperature Life Test GJBl50.3-2009(MIL-STD-810 D) High Temperature Test GJBl50 - 4(MIL-STD-810D) Low Temperature Test GB2423.3-2008(IEC68-2-3)T est Ca: Constant Heat Test GB2423.4-2008(IEC68-230) Test Db: Damp Heat Alternative Test GJBl50.9-2009(MIL-STD-810 D) Damp Heat Test 6 - Advantage - - - - 1 - Energy-saving | # Bypass mode to adjust cooling capacity to achieve a constant temperature and humidity effectively # Apply plate exchanger as intermediate heat exchanger to the cascade refrigerating system, ensuring high effective.

| 2 - Easy operation | # Using company owned brand KOMEG KM-5166 LCD touch screen controller with PID control parameters setting; # Flexible approach for data collection and recording | 3 - High reliability | # Key parts are imported to ensure service life and high reliability | - - - -
