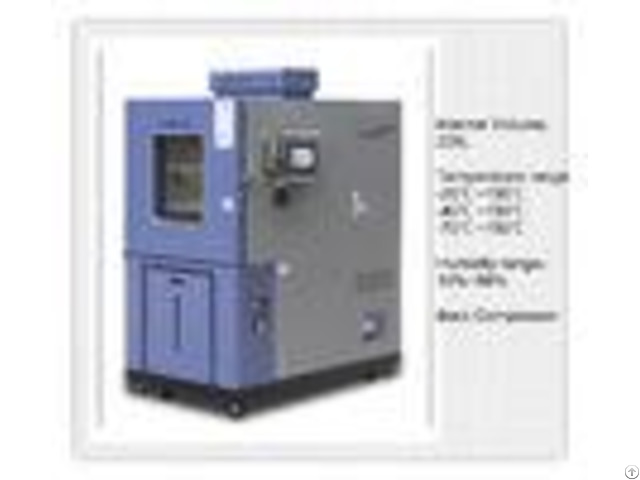

Lab 150l Programmable Humidity And Temperature Controlled Chamber With Touch Screen - China

150L Temperature Humidity Environmental Test Chamber for semiconductor 150L Constant Temperature and Humidity Controlled Environmental Test Chamber Price is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance.

It is simple to operate and program easy to edit.

It can show the set values and operative time.

Constant Temperature and Humidity Controlled Environmental Test Chamber Price applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

1 - Environmental test chamberStandard: GJB150.3 high-temperature testing GJB150.4 low-temperature testing GJB150.9 humid testing GB11158 Technical conditions for high-temperature testing box GB10589-89 Technical conditions for low-temperature testing box GB10592-89 Technical conditions for high and low temperature testing box B/T10586-89 technical conditions for humidity testing chamber GB/T2423.1-2001 Low-temperature testing methods GB/T2423.2-2001 High-temperature testing methods B/T2423.3-93 Testing Method for humidity Test Chamber GB/T2423.4-93 Alternating hot and humid testing method GB/T2423.22-2001temperatu re testing method IEC60068-2-1.1990 low-temperature testing method IEC60068-2-2.1974 high-temperature testing method 2.150L EnvironmentalTemperature Humidity Test Chamber Features: 1 - Structure: Our housing are high-quality carbon steel with static color spray outside and galvanized steel sheet inside.

Sheet metal processing machines are TRUMPF from Germany.

TRUMPF is famous for its precise bending technology, so all our chambers have a precise and neat outlook.

We also have a strict requirement of our sealing workers, all must have more than 10-year experience in sealing technique.

2 - We use tube bending machine for copper tube bending, this way can decrease the welding points.

This is easy to keep the copper tube clean to ensure longer service life of the compressor.

Also less welding points can reduce the resistance when the liquid flowing inside, to keep compressor working in higher efficiency, and better energy-saving.

3 - Specifications: KMH-S series( -70C 150C) - - - - Model | KMH-S series | 150S | 225S | 408S | 800S | 1000S | Temp.

range | -70C 150C | Interior sizel | W(mm) | 600(mm) | 700(mm) | 700(mm) | 1000(mm) | 1000(mm) | H(mm) | 600(mm) | 700(mm) | 750(mm) | 1000(mm) | 1000(mm) | D(mm) | 460(mm) | 480(mm) | 800(mm) | 800(mm) | 1000(mm) | Exterior size | W(mm) | 880(mm) | 980(mm) | 980(mm) | 1280(mm) | 1280(mm) | H(mm) | 1730(mm) | 1890(mm) | 1940(mm) | 2160(mm) | 2160(mm) | D(mm) | 1400(mm) | 1460(mm) | 1740(mm) | 1750(mm) | 1950(mm) | Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | Weight(KG) | 280 | 330 | 450 | 550 | 650 | Humidity uniformity | 3.0R.

H | 5.0R.

H | Heat up time | -70C +100C, within 60 min | Pull down time | +20C -70C, within 80 min | Humidity Range | 2098R.

H | Temp.

constancy | 0.5C | Humidity constancy | 2.5R.

H | Temp.

uniformity | 2.0C | Safety device (standard) | NFB, over pressure, over heat and over current protection for compressor, Over temp.

protect, over load protect of blower, dry heat protection | Interior material | Stainless Steel Plate(SUS 304) | Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | Ambient Temp.

| +5C +35C | Wiring method | AC 38010 50Hz, 3 phase 4 wires +Ground Wires | Controller | LCD Touch Screen, Chinese or English display selectable | Operation model : Program or fix point running | Memory capacity : 120programs, 1200steps, | All repeat 999 cycles, part repeat 99 cycles | - - - - 5 - Parts and brands 4 - Details of the chambers Compared with other suppliers' chamber 6 - Trade show: 7 - Package 8 - About us Other series for choose: Programmable Temperature & humidity testing Chamber Air Thermal Shock Tester Thermal Shock Tester Rapid temperature change chamber/ ESS Salt Spray Tester Walk In environmental Testing Chamber Drive in environmental Testing Chamber Temperature & humidity & Vibration Combined Testing Chamber Aging Oven Tester Rain/Spray Testing Chamber Burn-in testing equipment Vibration Tester Precision Oven Tester, etc.
