Lcd Touch Panel Accelerated Aging Calculator For Rubber And Plastic Industry - China

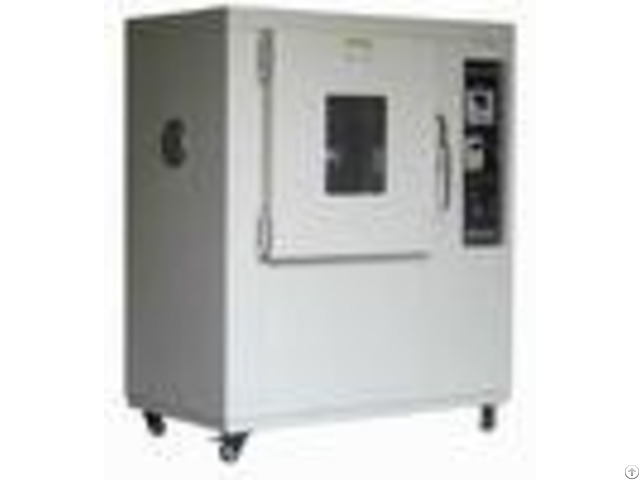

304-LCD Touch Panel Heat Resistance Test Air - Ventilation Aging Test Chamber for Rubber and plastic industry Detailed Product Description - - - - Usage: | Universal Testing Machine | Type: | Air-ventilatiion Testing Machine | Controller: | LCD Touch Panel Controller | Insulation: | PU&Fiberglass Wool | Service: | Customization | Air Change Rate: | 5 To 200 (3 To 250) Times/ Hour | Warranty: | 12 Months | Temp.

Range: | Room Temp.

+20+100 | Power: | AC 38010%50Hz, 3 Phase 4 Wires +Ground Wires | Interior Material: | Stainless Steel Plate(SUS 304) | - - - - Product Description Ventilation aging test machine used to test the rubber specimen wires, cables, insulation or covered, the aging of the sample to compare before and after aging of tensile strength and elongation.

Ventilation aging chamber with hot air circulation, promote aging, confined within the box strong, with a removable inner box air apparatus, with over-temperature protection device automatically cut off .

Introduction & Application: Suitable for all kinds of electronic products, expecially for products with heating characteristics Product and loading area should be separated Large-scale production Aging Test Machine simulates the environment of high temperature atmospheric pressure environment, which is used to heat resistance test for electrical insulation, ventilation aging test of electronic parts, plasticizing product, treatment of mandatory ventilation, etc.

Specifications - - - - Specifications | | Interior dimensions(W*H*D) mm | 1500*1280*550 | Exterior dimensions(W*H*D) mm | 1720*1980*750 | Temp.

range | Room Temp.

+20+100 | Temp.

constancy | 0.5 | Temp.

uniformity | 3 | Test.

capacity | 88PCS/CYCLE(Custom made available) | Dimension | 100W*100HJ*50D(MM) | Test range | FAN(full machines number) | Voltage range | 350V | Current range | 5% | Speed | 0-15000RPM, 8% | The detection speed | 7-12sec/cycle | Note: 1 - We reserve the right to change specifications without prior notice 2 - Customized sizes and configurations available | - - - - photos show: Features 1 Multi-plane horizontal diffusion air circulation system.

2 PID digital setting temperature controller, SCR current regulation control.

3 Coupled safety protection circuit with breakdown indicator.

4 Digital watt-hour meter.

5 Interior is made in 1mm SUS304 stainless steel plate.

6 Exterior is finished with powder coating.

7 Precise ventilation regulating device.

8 The ventilation rate can be regulated between 3~250 cycles / Hr.

9 Wing diffusion supply air circulation system, fresh air ventilation can be arbitrary adjustment.

10 Internal rotary free dismantling, suspension frame motor speed is 8-10 rpm.

11 Ventilation measurement function.

After-sales service We deal with your complains within 24 hours.

Training how to install the machine, training how to use the machine.
