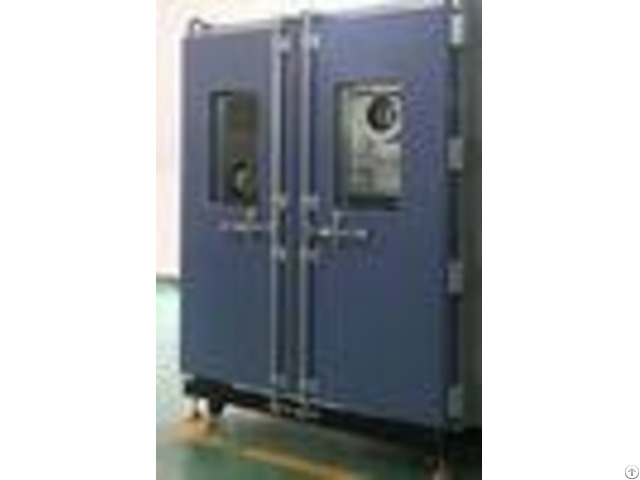

Led Touchscreen 7 Inch Environmental Test Chamber Stainless Steel For Auto Testing Machine - China

SUS304 Stainless Steel Environmental Test Chamber, Pharmaceutical Test Equipment Tecumseh Compressor Environmental test chamber Standard GJB150.3 high-temperature testing GJB150.4 low-temperature testing GJB150.9 humid testing GB11158 Technical conditions for high-temperature testing box GB10589-89 Technical conditions for low-temperature testing box GB10592-89 Technical conditions for high and low temperature testing box B/T10586-89 technical conditions for humidity testing chamber GB/T2423.1-2001 Low-temperature testing methods GB/T2423.2-2001 High-temperature testing methods B/T2423.3-93 Testing Method for humidity Test Chamber GB/T2423.4-93 Alternating hot and humid testing method GB/T2423.22-2001temperatu re testing method IEC60068-2-1.1990 low-temperature testing method IEC60068-2-2.1974 high-temperature testing method Product Application Pharmaceutical test equipment capable of testing large components, assemblies and finished products Thermotron's Walk-In chambers are able to simulate a wide range of temperature and humidity environments.

These chambers can be used for testing and controlled storage as well as a versatile laboratory environment for conducting test procedures in the telecommunications, defense, aerospace, pharmaceutical, automotive and electronics industries.

Details 1 - Good quality and reasonable price 2 - Excellent performance 3.12 months warranty Specifications HST-S series( -70C 150C) - - - - Model | HST-S series | 150S | 225S | 408S | 800S | 1000S | Temp.

range | -70C 150C | Interior sizel | W(mm) | 600(mm) | 700(mm) | 700(mm) | 1000(mm) | 1000(mm) | H(mm) | 600(mm) | 700(mm) | 750(mm) | 1000(mm) | 1000(mm) | D(mm) | 460(mm) | 480(mm) | 800(mm) | 800(mm) | 1000(mm) | Exterior size | W(mm) | 880(mm) | 980(mm) | 980(mm) | 1280(mm) | 1280(mm) | H(mm) | 1730(mm) | 1890(mm) | 1940(mm) | 2160(mm) | 2160(mm) | D(mm) | 1400(mm) | 1460(mm) | 1740(mm) | 1750(mm) | 1950(mm) | Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | Weight(KG) | 280 | 330 | 450 | 550 | 650 | Humidity uniformity | 3.0R.

H | 5.0R.

H | Heat up time | -70C +100C, within 60 min | Pull down time | +20C -70C, within 80 min | Humidity Range | 2098R.

H | Temp.

constancy | 0.5C | Humidity constancy | 2.5R.

H | Temp.

uniformity | 2.0C | Safety device (standard) | NFB, over pressure, over heat and over current protection for compressor, Over temp.

protect, over load protect of blower, dry heat protection | Interior material | Stainless Steel Plate(SUS 304) | Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | Ambient Temp.

| +5C +35C | Wiring method | AC 38010 50Hz, 3 phase 4 wires +Ground Wires | Controller | LCD Touch Screen, Chinese or English display selectable | Operation model : Program or fix point running | Memory capacity : 120programs, 1200steps, | All repeat 999 cycles, part repeat 99 cycles | - - - - Main Features 1) The system allows users to set max.

120 groups of patern/programs(PTN)x1200 sections(SETP), each program can be arbitrarily devided into any number of segments.

2) Each running program can be operated for 9, 999 times, or repeated for unlimited times of cycle, meanwhile the running program can be devided 5 groups to execute additional parts of the cycle.

3) Adopts intelligent type micro-competer PID + SSR/SCR, be able to sync output in positive & reverse direction automatically, controlling precision is accurate & stable, containing advanced slope controlling logic, fully meet customers' testing purposes.

4) When setting of temperature, humidity and number of cycles and so on is done, graph of relevant settings can be generated immediately, and these graphs can be obtained at the same time while programs are running.

5) Containing 15 fully-functional system inspection devices, so as to ensure the operational safety of the equipment, when there is trouble detected, controlling power will be cut off, meanwhile, trouble occurrence time, name of the trouble item and solutions will be indicated on screen automatically.
