Longitudinal Stress Body Welded Wire Mesh Machine 380v 50hz Rated Voltage - China

Fully Automatic Best Price In RollsWelded Wire Mesh Machine For Fencing Product Description This machine adopts electrical synchronous control technique, both welding time and cent-control welding is composed of digital and integrated electric circuit.

this operation is accurate, it has stable function, and without welded tracks.

not only welding speed is fastbut alsoit is easy to learn and operate, Step motor controls fallen wefts atructure and drawing materials are automatic, so it is even and accurate the edge of mesh is regular, it is unnecessary to slice the side.

Drawing mesh adopts the device with the elastic tension link and fixing mesh, it is easy to regulate mesh hole and mesh size is rather accurate, welding aperture could also adjust randomly within range.

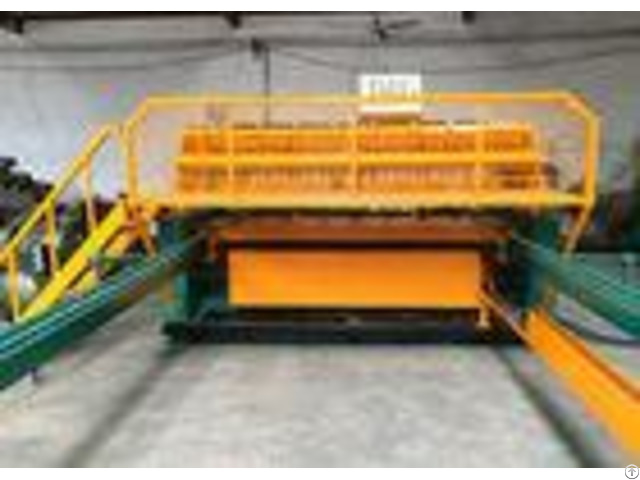

- - - - Item MR-1 MR-2 MR-3 MR-4 MR-5 MR-6 Wire Diameter 0.5-0.8mm | 0.8-1.2mm | 0.8-1.8mm | 0.8-1.8mm | 1.2-2.5mm | 1.2-2.5mm | Mesh Sizes 1/4" | 1/2" | 1/2"-4" | 1"-4" | 2"-6" | 1"-6" | Net Width 1.2m | 1.2m | 1.5m/2m | 1.5m/2m | 2m/2.5m | 2m/2.5m | Rated Voltage 380v 50 hz | 380v 50 hz | 380v 50 hz | 380v 50 hz | 380v 50 hz | 380v 50 hz | Motor Power 2.2kw | 2.2kw | 2.2kw | 4kw | 6kw | 6kw | Welded Speed max 75 rows/min | max 100 rows/min | max 120 rows/min | max 80 rows/min | max 75 rows/min | max 80 rows/min | overall Dimension 2.3*1.3*1.4m | 2.3*1.3*1.4m | 3*1.75*1.65m | 3*1.75*1.65m | 3.5*1.75*1.65m | 3.5*1.75*1.65m | Weight 1.5t | 1.5t | 2.5t | 3.5t | 4t | 5t | Welded Transfomer Voltage 65KVA*3 | 65KVA*3 | 65KVA*4 | 65KVA*5 | 85KVA*4 | 85KVA*8 | - - - - Product Show Welded Roll Wire Mesh Machine Welded Panel Wire Mesh Machine Feature Of Welded Wire Mesh Machine 1 - Main body: It adopts longitudinal stress body and good quality thick steel plate to ensure the strength and stability of the main body.

2 - Welding Power Source: Since the distance between wires is long, the welding head is suitable to conduct single-point welding.

So the machine will choose the small power 150KW discharging transformer which is special used for resistance welding as the welding power source.

To ensure the strength and stability of the welding.

3 - Welding Control System: The secondary which is controlled by microcomputer will identify the output of current automatically in order to guarantee the constant current of each welding spot.

In the meantime, the control system is equipped with the function of voltage compensation which is used for the automatic detection of the voltage change in order to ensure the constant strength of the welding spot.

4 - Pressurized Mechanism: Multiple pressurized mechanisms are adopted to drive the row welding electrodes to conduct welding to each wire respectively.

Finished Product Show
