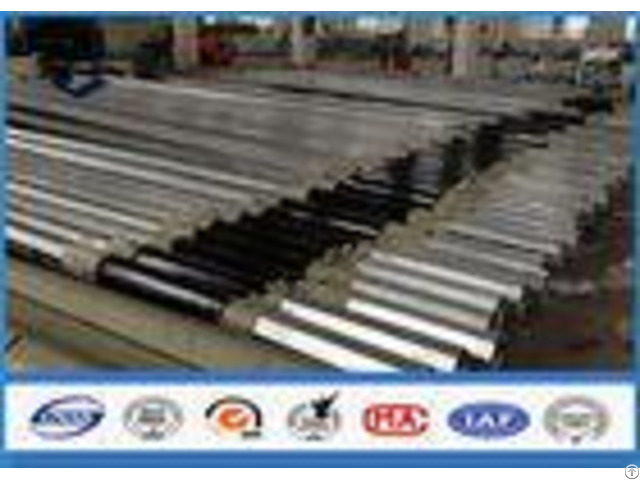

Low Voltage Tapered Steel Pole Galvanized Metal Posts With Bituminous Painting - China

Low Voltage Hot Dip Galvanized Octagonal Steel Pole, Metal Pole with Bituminous Painting Specification - - - -

Type | Burial | Applicant | Electrical Distribution Power Line | Shape | Octagonal | Material | Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345 used in China.

Q235 equipment to SS400 - Min Yield Stress 235 Mpa.

Q345 equivalent to S355JR.

Gr 50 - Min Yield Stress 345 Mpa.

| Tolerance of dimension | +- 2% | Power | 10 KV ~550 KV | Safety Factor | Safety factor for conducting wine : 8 Safety factor for grounding wine : 8 | Design Load in Kg | 300~ 1000 Kg applied to 50cm from the top pole | Surface treatment | Hot dip galvanized in accordance with ASTM A 123 - | Section | One | Design of pole | Against earthquake of 8 grade | Wind Speed | 160 Km/Hour .

30 m /s | Minimum yield strength | 355 mpa | Minimum ultimate tensile strength | 470 mpa | Max ultimate tensile strength | 630 mpa | Standard | ISO 9001 : 2008 | Painting | Bituminous Painting | Welding | Welding complies with AWS D1.1 standard.

| Thickness | 3.0mm, 3.5mm, 4.0mm | Production Process | Raw material test Cutting Molding or bending Welding (longitudinal )Dimension verify Flange welding Hole drilling Calibration Deburr Galvanization or powder coating, painting Recalibration Thread Packages | - - - - - - - -

Advantage | # Short Construction Cycle # Less Land Occupation # Low Overall Cost # Easy Installation and Maintenance # Weather Resistance # Anti-corrosion # ODM & OEM are available # Capable to Handle Volume Orders # Provide Professional Design by Our Experienced R&D Engineers | - - - - Description Through the efforts of the company staff, the support and cooperation from all over the world.

The company's products have been exported to Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc.

We have good export experience and with 1 container export to World in average every day.

Others Standard poles25FT, 30FT, 35FT, 40FT, 45FT - - - - Height (ft) | Thickness (mm) | Butt Diameter (mm) | Tip Diameter (mm) | Design Load (kg) | Yield Stress (MPA) | Zinc Coating (microns) | 25 | 2.5 | 152 | 120 | 300 | 345 | 86 | 30 | 3.0 | 226 | 127 | 500 | 345 | 86 | 35 | 3.0 | 248 | 127 | 500 | 345 | 86 | 40 | 3.0 | 317 | 127 | 500 | 345 | 86 | 45 | 3.0 | 328 | 127 | 500 | 345 | 86 | - - - - Material Test: 1 - All of our material are purchased from famous mill factory to assure the quality.

2 - A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory; 3 - Before put into production, all the material must pass the chemical and physical analysis to make sure that they have met the requested strength and component.

Production Process # Raw material test # Cutting # Bending # Welding (longitudinal ) # Dimension verify # Flange welding # Hole drilling # Calibration # Deburr # Galvanization or powder coating or Bituminous painting # Recalibration # Packages - - - - Best Service: --At Jiangsu BoshengSteel Poles Co., Ltd, we alwaysproviding our clients with great quality products and superior Customer service.

| Quick Lead Time--We inform our cistomers the exact delivery time when they plac the order and then strictly following on when we agreed.

| Unbeatable Prices-- We continuously strive to find ways of reducing our production costs, and saving the cost.

| Unbeatable Quality --we always supply good quality also leading products to all of our customers.

| Brand Awareness -- The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your customers.

| Special Offers.

-- In order to maintain our competitive edge, we are constantly running special offers onour products, consumer goods, and design services.

Contact our sales team to see how we can help you save a lot of money.

| Special support-- we have a policy term to support our VIP customers for products also payment.

| - - - - Terms and Conditions 1 - Price Term: EXW, FOB, CFR or CIF.

EXW: Poles Cost FOB : Pole Cost + Land Transportation + Fee on Port CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.

2 - MOQ: One 40FT Container.

3 - Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment.

Other payment way can be negotiated.

4 - Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.

5 - Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients requirement.

Company Contact:

• Posted By: Jiangsu Bosheng Steel Poles Co.,limited

• Phone: 86-510-80326616

• Address: Heqiao Industrial Zone, Yixing City, Jiangsu Province. China., Yixing , Jiangsu , China

• Email:

• Website: https://www.metalutilitypole.com

• Business Description: Jiangsu Bosheng Steel Poles Co., Ltd founded in 2007, Which is the specialized manufacturer of various steel poles including street lighting pole, electric power pole, traffic signal pole, flag pole, wind power pole and microwave communication tower, etc.
