N Power Divider Combiner 5 1000mhz 2 Way - China

● Model Number: XQY-PS2-5/1000-NE

● Wideband Frequency : 5-1000MHz

● Low Insertion Loss : ≤1.0 dB

● low VSWR:

Input Port VSWR: Typ.

1.15 / Max.

1.25

Output Port VSWR: Typ.

1.12 / Max.

1.25

● Excellent Amplitude Balance: ≤ 0.3dB

● High Port-to-Port Isolation: Typ.

26dB / Min.

17dB

● Input/Output connector type: N-Female

● Customed frequency bands, connector type and optimized specifications are available.

2 Way N Power Combiner 5-1000MHz Overview

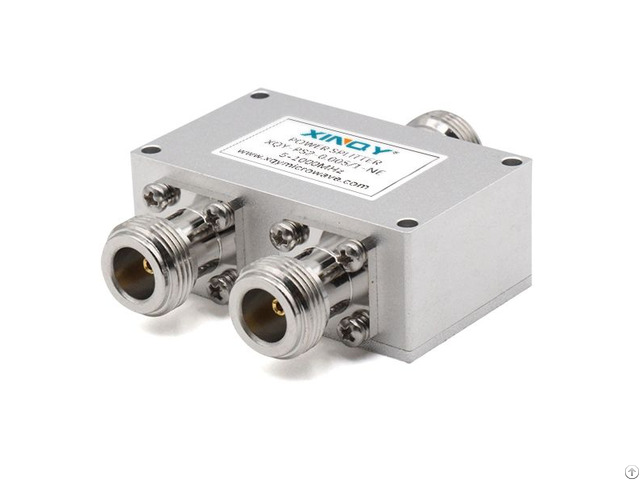

2 Way N Power Divider/Combiner 5-1000MHz is an RF broadband, 2 way, power divider/combiner furnished with N female coaxial connectors.

The broadband band frequency from 0.005 - 1 GHz are covered with optimal performance.

Max microwave input power levels up to 1 watts, which can be handled in power splitter and up to 0.5 watts as power combiner applications.

Customed frequency bands, connector type and optimized specifications are available! For any enquiries about our products or any customization, please Contact us, and we will quickly get back to you.

Please see Parameters tables for details.

Electrical performance

The electrical performance of 2 Way N Power Divider/Combiner 5-1000MHz is highlighted by 1.0 dB max insertion loss (Excluding theoretical loss 3.0 dB), 17 dB min isolation, 1.25: 1 max input VSWR and 1.25: 1 max output VSWR.

Equal power split and balance is displayed by 0.3 dB max amplitude balance and 3 degrees max phase balance.

Please see Parameters tables for details.

Wide-band or narrow-band depending on your needs, all our power dividers, power splitters, combiners are offered low VSWR and low insertion loss and high isolation over a large temperature range (usually -55°C to +85°C).
