Optional Ccd Hot Bar Bonder Automatic Soldering Equipment With Sealing Process - China

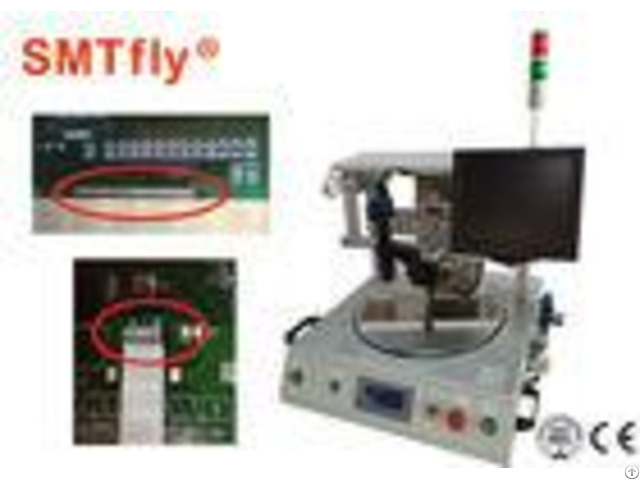

Optional CCD Hot Bar Soldering Machine for Soldering FPC to PCB, SMTfly-PC1A Feature: # Extremely short cycle time with rotary table design # Product loading and unloading can be done during the heat # sealing process # High quality heat seal application up to 0.25mm pitch # Pneumatic bonding head provide up to 3, 900N force # Digital programmable pressure control with LCD display # Closed loop PID temperature control with visible LED display # Bonding cycle is triggered by a real time pressure sensor # Floating Thermode ensure consistent pressure and heat transfer # along the flexfoil to LCD and/or PCB # Precision product fixtures (2X), easy exchange, provided with # micrometer alignment and vacuum to fix components # Optional CCD alignment module with frame, camera, lens, # monitor and illumination for fine pitch application # Full microprocessor logic control Optional CCD Hot Bar Soldering Machine for Soldering FPC to PCB, SMTfly-PC1ASpecification: - - - - Size | 620mm X 690mm X 570mm | Max.

Working Area | 200mm X 150mm | Air Pressing | 0.45-0.7Mpa | Weight | 95Kg | - - - - FPC Hot Bar Soldering Machine for FFC Hot BondingApplication: Advantages: ultra-fine pitch welding can be achieved; temperature, pressure digital; welding speed 6-8S (excluding artificial take-off time) Function: Suitable for all kinds of high density TAB, TCP crimp and FPC, FFC and PCB solder crimp.

CCD Hot Bar Soldering Machine for Soldering FPC to PCB, SMTfly-PC1A: About us: SMTfly is a leader in PCB Separator, hot bar soldering machine & other SMT equipments, it provides high-end PCB manufacturing machines for industrial factories in this word.

SMTfly was found in September of 2004, it is a professional technology equipment manufacturer with R&D, production, sales and service in one line.

SMTfly head office is located at Ganghuaxing industrial park, Fuyong Town, Shenzhen.

Adhere to the "customer as the center", meet the needs of the electronic industry customers by technological innovation & management optimization.

Company Contact:

• Posted By: Shenzhen SMTfly Electronic Equipment Manufactory Ltd

• Phone: 86-755-33581320

• Address: Building 2, Gang Hua Xing Industrial Park, Chongqing Road, Fuyong Town, Shenzhen, China 518103, Shenzhen , guangdong , China

• Email:

• Website: https://www.laserpcbdepanelingmachine.com

• Business Description: Established in 2004, SMTfly Electronic Equipment Manufactory is a professional manufacturer and exporter that is concerned with the design , development and production of laser pcb depaneling machine, pcb separator, pcb cutting machine , pcb, fpc robotic soldering machine.
