Plug Type Fiber Optic Fixed Attenuator - China
price: contact company for price

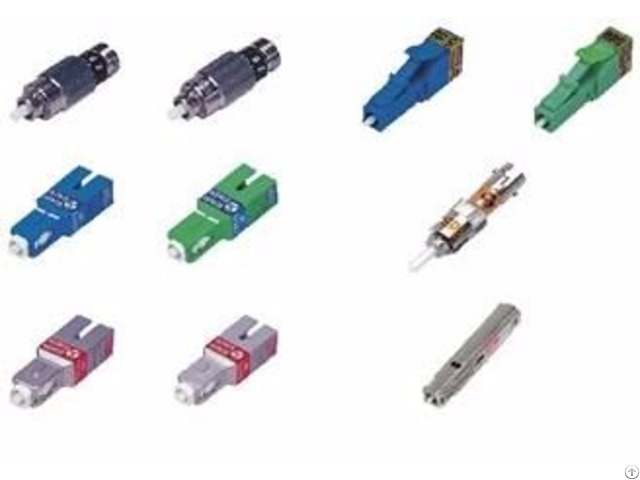

Plug Type Fiber Optic Fixed attenuator
Description:
Available in FC, SC, LC, ST and MU plug type.
They are suitable for connection through panel-mounted adapters;
Precision polished endface are available for both PC and Angle PC types;
Standard wavelength is 1310/1550nm and also C/L band or any other custom specifications are available.
Features:
High-power light source durability
Wavelength independence
Compliant with GR-910-CORE
Applications:
Erbium Doped Fiber Amplifiers (EDFA)
Dense Wave Division Multiplexers (DWDM)
Overpowered fiber optic systems
Specifications:
Parameters FC, SC, LC, ST, MU, DIN, E2000, MTRJ, Hybrid
Attenuation Range 2dB ~ 40dB
Operation Wavelength SM: 1260-600nm, or 1310nm/1550nm
MM: 850nm, 1310nm
Return Loss ≤50dB (PC), ≤55dB (UPC), ≤65dB (APC)
Attenuation Accuracy ±0.5dB (1 ~ 10 dB)
±10% of Attenuation Value (11~40 dB)
Polarization Dependent Loss (PDL) ≤0.2dB
Exchangeability ≤0.2dB
Repeatability ≤0.2dB
Durability ≤0.2dB Typical 1000 matings
Operating Temperature -20 ~ +75 degree centigrade
Storage Temperature -40 ~ +85 degree centigrade
