Resistive Power Divider Combiner 10 Way - China

Model Number: XQY-PS8-DC/3-SER

Wideband Frequency : DC-3GHz

Low Insertion Loss : ≤23.5 dB

low VSWR:

Input Port VSWR: Typ.

1.16 / Max.

1.25

Output Port VSWR: Typ.

1.18 / Max.

1.30

Excellent Amplitude Balance: ± 0.8dB

High Port-to-Port Isolation: Min.

15dB

Input/Output connector type: SMA-Female

Customed frequency bands, connector type and optimized specifications are available.

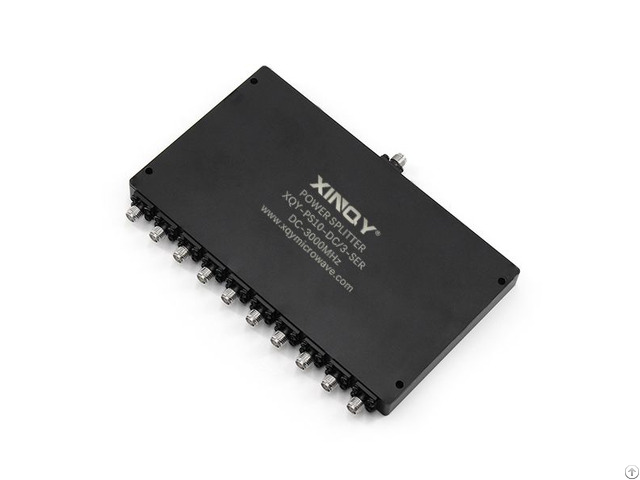

10 Way SMA Resistive Power Divider/Combiner DC-3GHz is an RF broadband, 10 way, power divider /combiner furnished with SMA female coaxial connectors.

The broadband band frequency from DC - 3 GHz are covered with optimal performance.

Max microwave input power levels up to 2 watts, combiner applications.

Customed frequency bands, connector type and optimized specifications are available!

Electrical performance

The electrical performance of 10 Way SMA Resistive Power Divider/Combiner DC-3GHz is highlighted by 23.5 dB max insertion loss, 15 dB min isolation, 1.25: 1 max input VSWR and 1.30: 1 max output VSWR.

Equal power split and balance is displayed by 0.8 dB max amplitude balance and 15 degrees max phase balance.

Please see Parameters tables for details.

Wide-band or narrow-band depending on your needs, all our Xinqiyuan power dividers, power splitters, combiners are offered low VSWR and low insertion loss and high isolation over a large temperature range ( -35°C to +75°C).
