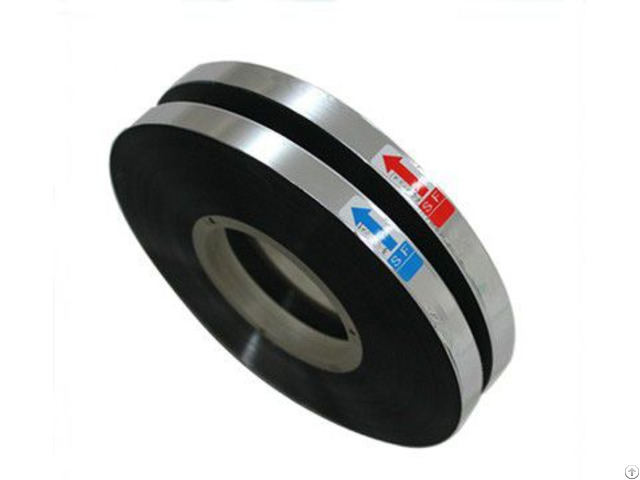

Segmented Metallized Film For Capacitor Use - China
price: 5.00 Dollar US$
1 - Basic Information
MPP Film Type: Metallized Polypropylene Film For Capacitors
Width: 4.5-130mm
Thickness: 1.6-12um
Margin Value: 0.5mm 1.0mm 1.5mm 2.0mm 2.5mm
Specification: Metalliz ed Film For Capacitors
Types Of Metallized Layer: Al Metallized Film, Zn/Al Metallized Film
Density: 0.905+/-0.005g/cm3
Processing Type: Vacuum Coating Capacitor Film
Trade Mark : CSF
MOQ: 1 Kilogram
Delivery Detail: 7~15 Days After Payment
Packaging Details : To be shipped in vaccum-sealed metallized plastic bags
Transport Package: Vaccum Package For Standard Export Carton
Port : Shanghai Or Ningbo
Origin: Tongling City, Anhui Province, China(Mainland)
2 - Products Types
(1)Single margin Opp film with one side Zn-Al metallized
(2)Single margin Opp film with slope resistance one side Zn-Al metallized
(3)Single margin Opp film with high resistance one side Zn-Al metallized
(4)Segmented metallized film
(5)Middle margin PET film with double sided Al metallized
(6)Single margin OPP film with one side Al metallized
(7)Double margin OPP film with one side Al metallized
(8)Multi-margin OPP film with one side Zn-Al metallized
(9)We can design and produce all kinds of metallized film for capacitors according to customer's requirement
3 - Normal Specification
Item: Metallized Polypropylene Film
Thickness(um): 2/3/4/5/ 6/7/8/9/10/12
Width(mm): 14/17.5/21/2 6/30/35/37.5/40/45/50/55/ 60/65/70/75/80/85/90/95/1 00/115/120/125/130
Margin Value(mm): 1.0/1.5/2.0/2.5 /3.0
ID(mm): 75
OD(mm): 180/240/270/320
Note: Other specifications and sizes of metallized bopp capacitor film which are not in the above table can be negotiable.
4 - Packing
(1)Film rolls are packed and heat-sealed in vacuum plastic bags with desiccants inside
(2)The bags are marked with type labels
(3)The bags are packed in carton cases
(4)The cartons are wrapped in wooden cases or reinforced carton
5 - Storage
(1)Metallized film should be stored in its original package with temperature 5~35ºC and humidity less than 85%RH before using.
(2)Metallized layer is easily oxidized when exposure to moisture.
Therefore, the film should be used as soon as possible when opened.
(3)The recommended temperature is 15-25ºC with humidty less than 60%RH after opening.
(4)With original sealed package, and stored as mentioned above, the storage time can be as following: Al metallized film: 12 months from the delivery date.
Al/Zn Alloy metallized film : As zinc is quite unstable, the storage period(from delivery date) depends on the resistance of the film: ≦10Ω:6 months 10-30Ω: 3 months >30Ω: 1 month
6 - Our Advantages
(1)Leading Technology *Professional manufacturing capacitor film for decades;Adopt advanced technology to ensure the reliability of products;A number of professional invention patents.
(2)High Quality Products
*Buy new equipment;Continuous innovation in the traditional production process; Quality management service center, quick response service within 24 hours.
(3)Fast Delivery *Experienced management team, can adjust the flexible delivery time according to customer demand.
(4)Government Support
*Our company was awarded “National High-tech Enterprise ”for three consecutive years;2018 National Intellectual Property Advance Enterprise;2019 Tongling advanced group award.
Build tomorrow's business with today's service!
Welcome to contact us!
Company Contact:
- Posted By: Anhui Safe Electronics Co.,Ltd.
- Phone: +8613305620368
- Address: Qi Feng Road, Shizishan Development Area, Tongling City, Anhui Province, China, Tongling , Anhui , China
- Email:
- Website: http://www.film-capacitor.com
Published date: July 4, 2019 - Modified date: July 4, 2019
- Business Description: Anhui Safe Electronics Co.,Ltd. founded in February 2007,is a joint-venture which is invested by Green Group(U.
K).
The company is located in Tongling,Anhui,China,spec ialized in manufacturing metallized film for capacitor use and metallized film capacitors.
Our quality management systems are certified by ISO9001 and our products have CQC,TUV,UL,VDE and other performance certifications,compliance with EU ROHS directive,with SGS report.
As a high technology enterprise,we focus on the new energy field and commit to be a world-class supplier.
