Si 60002 F Ykjd 8209nl 1 Port 100 Base T Through Hole Rj45 Jacks With Integrated Magnetics - China

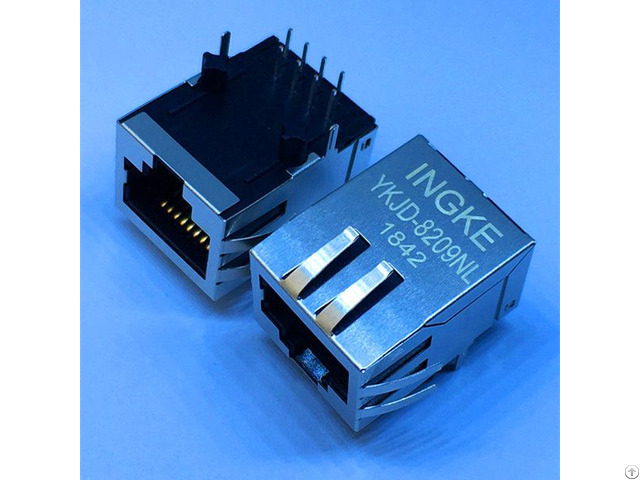

Ingke YKJD-8209NL 100% Cross SI-60002-F 1 Port 100 Base-T Through Hole RJ45 Jacks with Integrated Magnetics Part Number : SI-60002-F

Made in China: YKJD-8209NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Panel Mount, Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Does Not Contain LED

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

SI-60118-F SI-61001-F SI-60182-F SI-60159-F SI-60136-F SI-60005-F SI-60128-F SI-60110-F SI-60022-F SI-60158-F SI-60217-F SI-60014-F SI-60015-F SI-60076-F SI-60123-F SI-61031-F SI-60129-F SI-60132-F SI-60133-F SI-60134-F SI-60138-F SI-60141-F SI-60143-F SI-60002-F SI-60001-F SI-60062-F SI-60024-F

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
