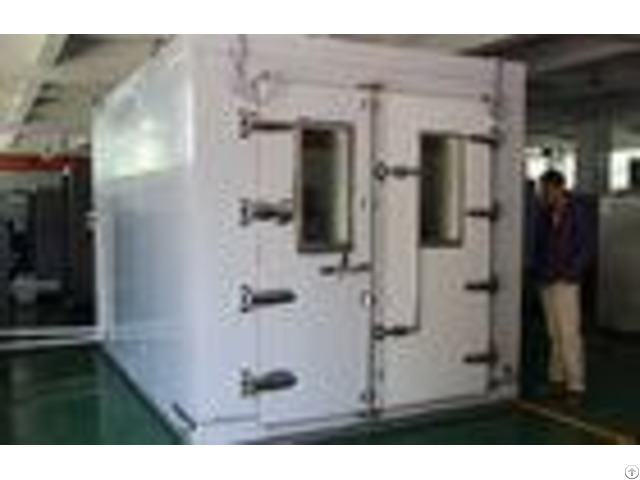

Stainless Steel 27 1 Cubic Customized Walk In Environmental Test Chamber - China
price: check with company for price
Stainless Steel Material 27.1 Cubic Customized Walk-in Environmental Test Chamber 1 - Applications Whether you're testing computers and copiers or automobiles and satellites, KOMEG's Walk-In Environmental Test Chambers provide solutions that work.
Capable of testing large components, assemblies, and finished products, KOMEG's Walk-In chambers simulate a wide range of temperature and humidity environments.
These chambers can be used for testing and controlled storage as well as a versatile laboratory environment for conducting test procedures in the telecommunications, defense, aerospace, pharmaceutical, automotive, and electronics industries.
2 - Standard Implemented and Met: Inspect standard: JJF-1101, GB/T 10592, GB/T 10586 Testing standards: YD/T 2061, HB 7122.3, 6783.7, GJB 5382.7, GJB 150, GB/T 2423, 5170.2, 5170.5, 5179.2, ASTM E512, NF EN 60068-2-38, CNS 12565, 12566, KS C0227, KS C022 3 - Main Technical Parameters - - - -
Model | KMHW-13 | Volume(m) | 27.1CBM | Interior Dimensions | W3000 x H2100 x D4300mm | Exterior Dimensions | W5050 x H2350 x D2250mm | Safety Devices(standard) | No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | Standard accessories | Sight window*1, cable port ( port50mm ) *1, chamber lamp*1, status indicator | Control System | Balanced Temperature & Humidity Control System | Refrigeration system | Water Cooled | Semi-hermetic compressor, single stage or cascade refrigeration system, | CFC free refrigerant ( HFC-507 and HFC-23 ) | Controller | Panel | 7-inch LCD Touch panel, Chinese or English display selectable | Operation model | Program or fix point running | Memory capacity | 120 programs, 1200steps, all repeat 999 cycles, part repeat 99 cycles | Accuracy | Temp: 0.1% of F.
S 1 digit Humidity: 0.1% of F.
S 1 digit | Input | Temp: pt-100, Humidity: pt-100 or 5V DCV | Comm.
port | RS-232 or RS-485 ( Softawre is option) | Temp.
range | Maximum: 80 C, 120 C; Minimum: -60 C, -50 C, -40 C, -30 C, -20 C, -10 C, 0 C | Humidity Range | 10%, 20%, 30% ~ 95% | Temp.
constancy | 0.5 C | Humidity constancy | 2.5%R.
H | Temp.
uniformity | 2.0 C | Humidity uniformity | 5.0%R.
H | Ambient Temp.
| +5 C+35 C | Wiring method | AC 380 10% 50Hz, 3 phase 4 wires + Ground Wires | Heat up time | +20 C+80 C, Within 60 min | Pull down time | +20 C ~ -55, -40 C, -20 C, -10 C, Within 120 or 90 or 60 min | Interior material | Stainless Steel Plate(SUS 304) | Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) | Insulation material | Rigid polyurethane foam | Door size (mm) | Single wing: W800 x H1800; Double wing: W1600 x H1800; | Note: 1 - We reserve the right to change specifications without prior notice 2 - Customized sizes and configurations available | - - - - 4 - Description Flexibility for structure The panels used in our chamber are 4 (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior.
An assembled box is self-supporting.
So that no heavy structural members are required.
Different door sizes, flooring upgrades, access ports, and other modifications are possible.
Widest test range, most customizable
