Stainless Steel Environmental Control Chamber 150l With Inner Water Supply Mode - China

LCD Touch panel Stainless steel 150L high and low temperature test chamber Specifications - - - - Chamber | Workspace volume | IW 500 IH 600 ID 500mm | Exterior size | EW 750 EH 1600 ED 1400 mm | Temperature | Temperature range | -40 to Normal temperature | Temp Deviation | 2.0 | Temp Constancy | 0.5 | Temp Uniformity | 2.0 | Ramping and soaking rate | +20 -40 within 60 min (no-load) (Ambient temperature +25) -40 +20 within 30 min (no-load) (Ambient temperature +25) | Temperature performance measurements comply with related regulation of IEC60068-3 standard; Sensors placed in the air outlet.

| .

Chamber Structure | Overall structure and chamber was composed of three parts as below.

Insulation box, separate refrigeration units, and electrical control cabinet.

| Insulation box | wall material: high-quality carbon steel with static color spray inner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber.

| Door | Heating wire was installed at the door frames to prevent condensation at low temperatures.

| Observation window | With 210 230mm (width height) observation window, multi-hollow electric insulation coated glass prevent condensation effectively | Cable port | 50mm*2 located on both sides (each*1) with rubber stopper and plastic cover | Lighting device | 11W/AC220V *1 LED light, located on observation window | Water outlet hole | Available for drain the condensate water | Sample holder | Two layers of stainless steel sample holder.

| Mobile Casters | Mobile Casters *4 with foot cups | Electric control box | Total power circuit breaker, over-temperature protection.

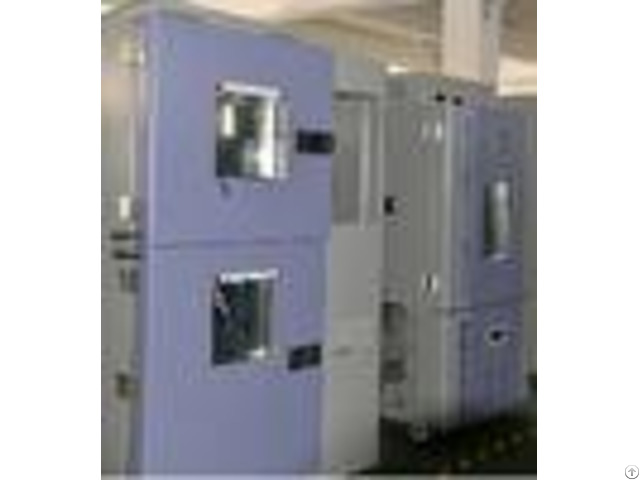

| Water supply system | Water pump automatic supply | - - - - Photo display Application: Climatic Temperature Cycling Test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity.

It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

After-sales service We deal with your complains within 24 hours.

Training how to install the machine, training how to use the machine.

Engineers available to service machinery overseas.

All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be dedicated to provide high quality service and products for you.
