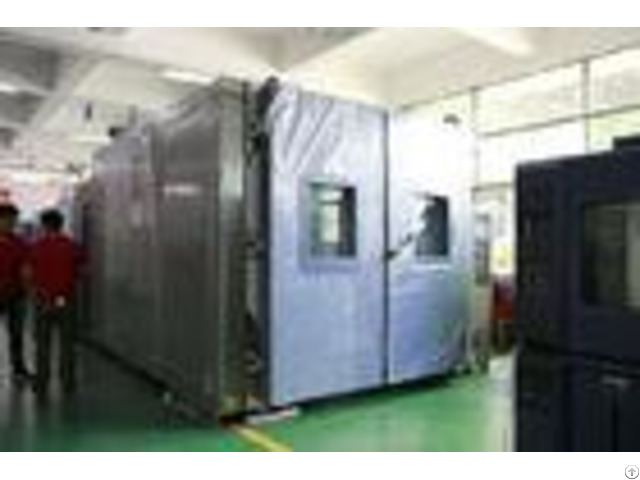

Stainless Steel Walk In Environmental Chamber For Vehicle Reliability Testing - China

Oversea Installation Available Walk-In Climatic Chamber for Vehicle Reliability Testing 1 - Walk-In Climate Test Chambers KOMEG Environmental test chambers offering a large volume of test space to conduct temperature and humidity testing for large batches of products or large product, such as prototype evaluation, research & development testing, production testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed.

KOMEG manufactures both panel walk-in chambers and solid walk-in chambers and can be configured as temperature chamber or temperature humidity chamber.

2 - Main Technical Parameters - - - - .

Main Technical Index | 1 - Body | 1.1 Workplace volume | IW 1000 IH 2000 ID 2000 mm about 4 m | 1.2 External dimensions | IW 2550 IH 2410 ID 2200 mm | 2 - Temperature | 2.1 Temp.

range | -65~120 | 2.2 Temp.

deviation | 2.0 | 2.4 Temp.

fluctuation | 0.5 | 2.5 Temp.

uniformity | 2.0 | 2.5 Heating and cooling rate | -65 +120 temperature change rate non-linear 2/min (no load) +120 -65 temperature change rate non-linear 1/min(no load) | Water-cooled.

The above specifications measurement in the environment temperature at + 25 without load | - - - - 3 - Features 1) Stainless steel interior 2) Painted galvanized steel exterior for long life 3) MAP service doors are hinged (no tools or lifting) 4) Easy access to frequently checked refrigeration components 5) Reliable steam generator system for humidity applications 6) Adjustable vanes in supply grille allow directing of airflow as needed 4 - Description Flexibility for structure The panels used in our chamber are 4 (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior.

An assembled box is self-supporting.

So that no heavy structural members are required.

Different door sizes, flooring upgrades, access ports, and other modifications are possible.

Widest test range, most customizable 5 - Meet the standard Standards Implemented and Met Inspect standard: JJF-1101, GB/T 10592, GB/T 10586 Testing standards: YD/T 2061, HB 7122.3, 6783.7, GJB 5382.7, GJB 150, GB/T 2423, 5170.2, 5170.5, 5179.2, ASTM E512, NF EN 60068-2-38, CNS 12565, 12566, KS C0227, KS C022 6 - Optional accessories Cable Port: Two size of cable port is available: 50mm, 100mm, 120mm Double door Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.

Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.

Carry-in inclined platform: Provided below the door to facilitate moving of specimens in and out through the door.

Entire ceiling blow-out duct The extremely wide air inlet reduces the airflow rate (down to apprrox.

0.5m/s) Dehumidifier The rotation regenerating dehumidifier (M-300)ensures precise control of low humidity (21, 23%RH)for electrostatic reliability tests.

Temperature and humidity recorder 100mm width recording paper with 6 dots 180mm width recording paper with 12 dots Status indication lamp Provide to signal chamber status and warnings when normal running, a malfunction running or stand by occurs.

Water purifier Provided to keep the humidifier heater free from scale and ensure the supply of water to humidifier.

Power socket Air cooled or water cooled type condenser After-sale Service: If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.

We can offer operation video and English operation muanual.

We can provide video-conference.

If customers require on-site service, the transport and travel expense shall be borne by customer.

[Specification for Walk In Climatic Test Chamber KMHW-4000S-01 - pdf]
