Three Integrated Environmental Testing Equipment Easy Operation For Military Industry - China

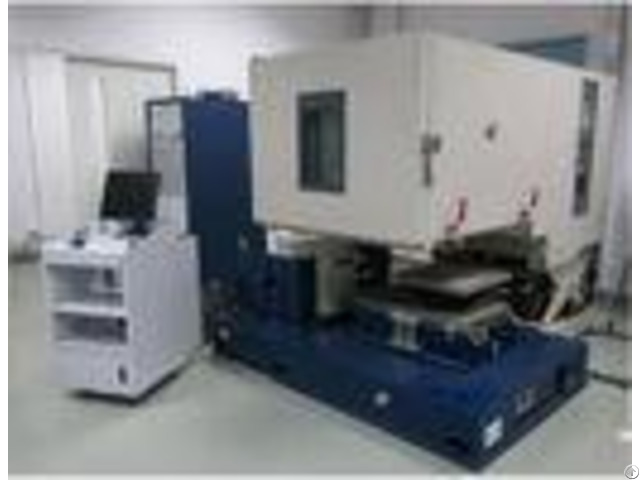

Temperature Humidity And Vibration Three Integrated Environmental Testing chamber for Military industry Detailed Product Description - - - - Application: | Laboratory, Testing Center, Production Line | Internal Volume: | 1000L | Interior Material: | SUS 304 Stainless Steel Plate | Exterior Material: | Baked Painting Steel Or Stainless Steel | Warranty: | 12 Months Free Parts Warranty | Lead Time: | 60 Working Days Upon The Deposit | Trade Terms: | EXW, FOB, CIF, DDU, DDP | | | - - - - Temperature Humidity and Vibration three integrated Test Chamber With precise temperature and humidity control system, this equipment provides variety of environmental simulate conditions that industrial research and biological test need.

It is used in medicine, textile and food production experiment, as well as in product stability, raw material, packing and lifetime test.

Technical Specification for HST-36L and HST-64L - - - - Model | HST-THV-1000B(Benchtop) | | 1000 A | 1000 B | 1000 C | Temp.

range | -40C 150C | -20C 150C | -40C 150C | -70C 150C | Interior size | W(mm) | 1000 | 1000 | 1000 | 1000 | H(mm) | 1000 | 1000 | 1000 | 1000 | D(mm) | 1000 | 1000 | 1000 | 1000 | Exterior size | W(mm) | 1300 | 1300 | 1300 | 1300 | H(mm) | 2400 | 2400 | 2400 | 2400 | D(mm) | 2800 | 2800 | 2800 | 2800 | Power(KW) | 14 | 16 | 18 | 20 | Weight(KG) | 1800 | 1500 | 1800 | 2000 | - - - - Specification for Other Model (1) HSTA series - - - - Model | HST-A series | 1000A | 1440A | Temp.

range | -20C 150C | Interior size | W(mm) | 1000 | 1200 | H(mm) | 1000 | 1000 | D(mm) | 1000 | 1200 | Exterior size | W(mm) | 1300 | 1600 | H(mm) | 2400 | 2400 | D(mm) | 2800 | 3100 | Power(KW) | 14 | 18 | Weight(KG) | 1500 | 1700 | Humidity uniformity | 3.0R.

H | 5.0R.

H | Heat up time | -20C +100C, within 35 min | Pull down time | +20C -20C, within 45 min | Humidity Range | 2098R.

H | Temp.

constancy | 0.5C | Humidity constancy | 2.5R.

H | Temp.

uniformity | 2.0C | Safety device (standard) | NFB, over pressure, over heat and over current protection for compressor, Over temp.

protect, over load protect of blower, dry heat protection | Interior material | Stainless Steel Plate(SUS 304) | Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | Ambient Temp.

| +5C +35C | Wiring method | AC 38010 50Hz, 3 phase 4 wires +Ground Wires | Controller | LCD Touch Screen, Chinese or English display selectable | Operation model : Program or fix point running | Memory capacity : 120programs, 1200steps, | All repeat 999 cycles, part repeat 99 cycles | - - - - Testing Standard # # GB-2423 - 1-89 (IEC68-2-1)Test A: Low Temperature Test # GB-2423 - 2-89 (IEC68-2-2)Test B: High Temperature Test # GJB360 - 8-87 (MIL-STD.

202F) High Temperature Life Test # GBJl50 - 3 (MIL-STD-810D) High Temperature Test # GJBl50 - 4 (MIL-STD-810D) Low Temperature Test # GB2423 - 3-93 (IEC68-2-3)Test Ca: Constant Heat Test # GB2423 - 4-93 (IEC68-230)Test Db: Damp Heat Alternative Test # GJBl50 - 9-93 (MIL-STD-810D) Damp Heat Test Packing:
