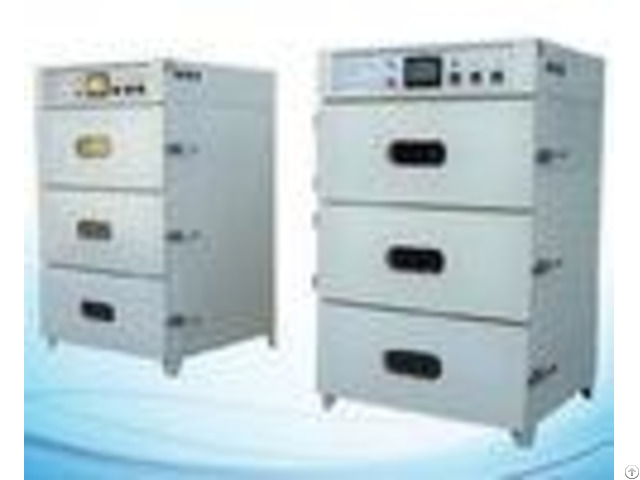

Three Layers Automatic Industrial Vacuum Drying Oven For Chemical Industry Medicine - China

Three Layers Automatic Vacuum Drying Oven for Chemical industryand medicine Product Description: - - - - parameter | performance | description/model | Battery special vacuum oven | Workroom size | height: 300mm width: 800mm depth: 600mm*3 layers | outline size | height: 1850mm width: 1420 mm depth: 890mm | working temperature | room temperature : +15~200 | the speed of rising temperatur | not more than 120 minutes when rising to the max.

temperature | heating power | 4.5KW*3 | electrical supply | Three- phases380V | outside material | Cold-rolled plate, spay platics | color | According to the customers color standard | working room material | SUS304 stainless steel plate | Stratified | Multi | layer floor | 2 layer mesh partition / layer | exhaust connection | back | Open method | Single-door, flexible double steel glass, with over pressure protection function | sealing ring | silicone rubber ring with high temperature resistance, no connector | temperature instrumentation | digital temperature controller | Temperature control mode | PID regulator | Temperature accuracy | 1 | Temperature uniformity | 5 | Temperature Sensor | PT100 | Timing Control | 10 -hour timer, the alarm buzzer | Over temperature protection | over-temperature protection, when over the temperature, cut off the heating power and alarm buzzer | Heating device | Heating wire | Vacuum | 100Pa, 6 hours pointer does not move, 12 hours to keep 98%, 24 hours to keep 95% | Gas leakage | 300pa/h | remark | three studios to work independently, independent heating, three sets of temperature control system, can work alone, can also work at the same time.

Manual control vacuum switch, vacuum- sealed well when the power cut.

The vacuum chamber can be individually, separately add nitrogen, without disturbing each other | - - - - Feature: This oven is mainly used with square vacuum chamber, can make full use of space.

Pumping speed fast and efficient, high vacuum, easy to operate.

Toughened bulletproof double glass observation window clearly the object of the working chamber.

The tightness of the box can be adjusted, the overall shape of the silicon rubber gasket to ensure a high vacuum chamber.

This product is suitable for the production process of electronic products off the bubble, dehydration, hardening and drying after cleaning treatment under vacuum heat treatment, the LED optical original lithium battery, and battery electrode, and so on, has a high reputation in the electric industry field.

Our Services Guarantee: 12 months for the whole machine.

Within 12 months under normal use and maintenance, If something is wrong with the machine, you will get spare part for free.

Out of 12 months, you will get spare parts at cost price.

You will also get technical support and service all the lifetime.

Technical support: 1, Technical support by phone, email or Whatsapp/Skype around the clock 2, Friendly English version manual 3, Engineer available to service machinery overseas After sales services: Normal machine is properly adjusted before dispatch.

You will be able to use the mchines immediately.

You will be able to get free training advice towards our machine in our factory.

You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support Packing:
