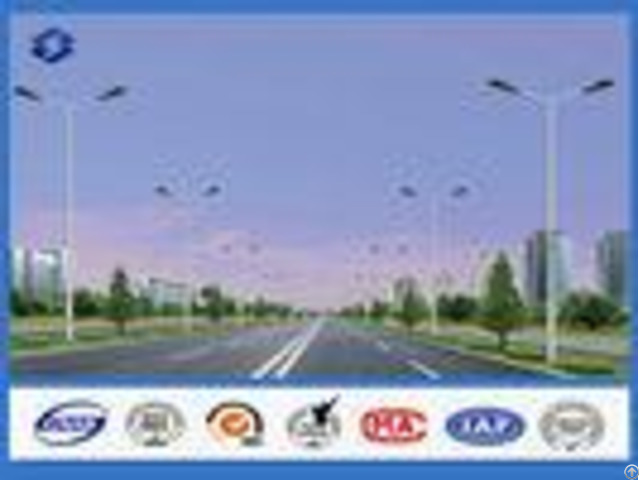

Two Arms Conical Led Light Pole Steel Sheet Material 5m 12m Street Lamp Post - China

Two Arms Conical Hot Dip Galvanized Powder Coated Street LED Light Steel Pole Product Description: Material Normally Q235 high qualitymild steel Mounting Height 5-12M Shape of Pole Round conical; Octagonal conical; Straight square; Tubular stepped; Polygonal Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine Brackets Single or double brackets are in the shape and dimension as per customer's requirement Welding Welding confirms with international welding standard of CWB.

No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.

Base plate mounted Base plate is square or round in shape with slotted holes for anchor bolts and dimension as per customer's requirement Ground mounted The length buried underground as per customer's requirement Galvanizing Hot dip galvanization with thickness of 80-100m average.

Inside and outside surface anti-corrosion treatment by hot dipping acid.

Zinc coating is more than 85 um thick, which is in accord with GB/T13912-92 standard.

- - - -

Hot dip galvanizing | Standard | Steel thickness/mm | Mean coating thickness/m | Metallic element | Content | Pole shafts, cross arms&bolted on accessories | ASTM A123/A123M-15 AS/NZS 4680 | >6 | 85 | Mn | 0.25%-0.40% | <3-6 | 70 | 1.5-3 | 55 | Cu | <0.15% | <1.5 | 55 | Bolts, nuts&washers | GB/T 5267.3-2008 (ISO 10684-2004) | | 54 | P | <0.025% | Foundation bolts | ASTM A153/A153M-09 | | 54 | S | <0.03% | - - - - Specifications - - - -

Height | 5 m to 12m | Application | Road, Street, Highway, etc | Shape | Conical | Lamp Power | 20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz | Arm | Double | Lighting Fixture | IP 65 | Working Atmosphere of Lighting Fixture | -35~+45 | Surface Treatment | Hot dip galvanized with ASTM A 123, color as request.

| Safety | Against earthquake of 8 grade | Wind Speed | 160 Km/Hour | Min Yield Strength | 355 mpa | Min Ultimate Tensile Strength | 490 mpa | Max ultimate tensile strength | 620 mpa | Standard | ISO 9001 | Thickness | 3mm | - - - - Manufacturing Our factory owns advances production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc.

All insure us to produce steel poles with best quality.

After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.

Delivery We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.

FAQ: 1 - Port of Loading: Shanghai, China 2 - Price term: EXW, FOB, CFR AND CIF.

3 - Payment Term: 30%TT in deposit, 70%TT before shipment.

Or LC.

4 - Delivery: Based on your order quantity.

Normally 15 days after receiving your deposit.
