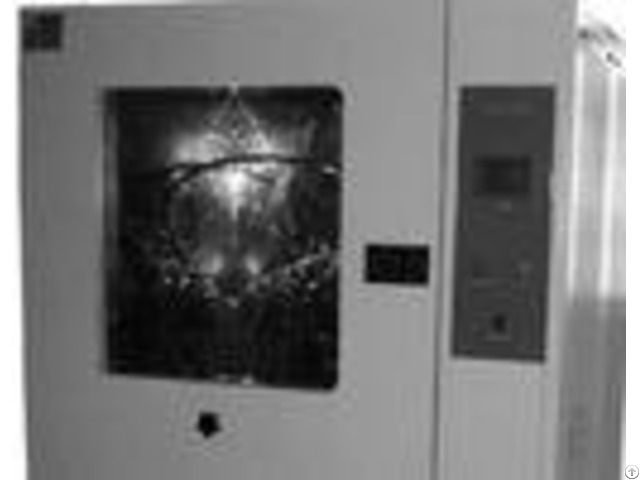

Waterproof Arm Sleeve Ipx 4 Rain Spray Test Chamber Adjustable Water Flow Volume - China

Simulation environmental water splash rain spray chamber Waterproof Arm Sleeve IPX 4 Rain Spray Test Chamber Product description: Rain spray chamber is used to test the water/rain/moisture proof ability of products and materials such as lighting, auto parts, household appliances and other products under the condition of moisture or rain.

Through this method, to see the influence of water on the products.

Its design considered auto maker's and electronic industry testing.

Large viewing glass window can let the operator see the specimen clearly.

Main features: 1 - The bottom of the machine adopts the high quality can be fixed PU wheel 2 - Digital setting, operating easy, maintenance quickly.

3 - Design consider auto makers sand electronic industry testing.

4 - Adopt large viewing glass can let operator see the specimen clearly.

5 - Adjustable water flow volume and pressure.

structure: 1 - Chamber material: SUS#304 stainless steel; 2 - Transparent window is convenient to observe specimen during testing; 3 - Blow fan adopts stainless steel shell, high sealing and wing speed, low noise; 4 - Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.

Technical specifications: - - - - Model No | HST-1728-A | HST-1728-E | Inner chamber size W*H*D(mm) | 120012001200 | 120012001200 | Exterior chamber size W*H*D(mm) | 175018501300 | 175018501300 | Water Temperature | Normal | Normal | Spray Type | Total water flow(L/min) | R1 | 1.8 | 1P1 | With in 1~1.5mm/min(In drip box) | R2 | 3.2 | 1P2 | With in 3~3.5mm/min(In drip box) | S1 | 24.5 | 1P3 | angle600, R: 400mm, 1.1L/min | S2 | 39.2 | 1P4 | angle1800, R: 400mm, 1.8L/min | Pressure of spray nozzle (kgf/cm2) | R1 | 0.1 | 1 - Flow rate of the water=0.07L/min 2 - 1P3, Radius: 400mm, open holes=16, total water flow: 1: 1L/min.

3 - 1P4, Radius: 400mm, open holes=25, total water flow: 1: 8L/min.

*Radius: 200mm, R400mm(For 1P3, 1P4 only) | R2 | 0.3 | S1 | 1 | S2 | 3 | Test Specimen Frame(RPM) | 17RPM | 1RPM | Spray Nozzle Rotation Speed | 23RPM | Swing 60 from vertical for 4 seconds at one time Swing 180 from vertical for 12 seconds at one time | Material | Interior chamber | SUS#304 stainless steel | Exterior chamber | Power supply | AC 1 phase 220V 60 / 50Hz 4KW | - - - - 1 - Uses of rain box tester This product is suitable for electric products assessment, shell and seal in the rain environment can ensure that equipment and components good performance test.

This product uses scientific design, makes the equipment can realistic simulation drop of water, water spray, splash water, water spray, etc., various kinds of environment.

Into the comprehensive control system and the adoption of the frequency conversion technology, which makes the rainfall test product frame rotation Angle, jet pendulum rod swing Angle of water quantity and the oscillating frequency can be automatic control.

2 - Based on the standard of rain box tester IEC60529-2001, GB4208-2008, GB2423.23, GB5170.38, GBl0485-93, IPX4, IPX3 equivalent JIS standard, DIN, MZl, etc 3 - Features of rain box tester (1) Glass door with wiper (2) Pneumatic drive of swivel tube (3) Adjustable swivel angle (4) Replaceable swivel tubes (5) Nozzle fittings can be swiveled and replaced (6) Adjustable water volume flow and measuring Control of test duration (7) Control System (8) Adjust pressure with flow meter.

(9) Adopts imported frequency converter to control rotate speed in order to ensure the test can be conducted as per the applied standards.

(10) A water filter is equipped.

4 - Main technical parameters of rain box tester - - - - Model | HST-1000 | Internal dimension W*H*D mm | 800 X 800 X800 | Exterior Dimensions W*H*D mm | 1160 X 1640 X960 | Observation window | Glass door | Test bench speed(rpm) | 1 ~5 adjustable | Turntable diameter | 300MM | Turntable load | 20KG | Intermittent be caught in time | 15min/25min | speed | 5-10 s/rpm | Water ring radius | 375mm, pipe diameter16mm | Nozzle jet Angle | 4590135 fixed direction, water spraytowards rotary center | Each spray hole flow | 1005 L/min(adjustable), flow display direct reading | Water spray pressure | 200-400, a pressure gauge direct reading | Test time | 1-999, 999min(adjustable) | Material | Internal 304 stainless steel, exterior 201 stainless steel | Safety protection device | Power overload, short circuit protection, earthling protection, water protection and alarm - ring tip | Power | AC 220V 50Hz | Total power | 1000W | - - - -
