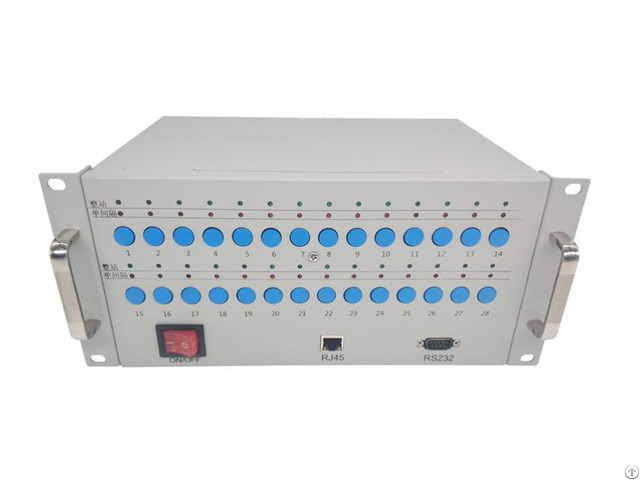

Xh 28 D1x2 Optical Switch Equipment - China
price: 350.00 Dollar US$
Features ●It has the characteristics of low insertion loss and fast switching speed.
●It can be controlled by RJ45 Ethernet or RS-232 serial port command.
●28 independent control optical switch buttons, easy to operate.
●Two different colors of LED display lights, showing the status of the light path.
● Equipment power supply supports AC: 85~265V AC power supply.
Performance Name Parameter Model XH-28-D1X2-U Working wavelength 850/1310nm Test wavelength 850nm Insertion loss ≤ 1.5 dB Repeatability ≤ ±0.02 dB Return loss ≥ 35 dB Crosstalk ≥ 50 dB Wavelength dependent loss ≤ 0.25 dB Polarization dependent loss ≤ 0.05 dB Switching time ≤10 ms(Adjacent channel) Fiber type MM(50/125um) Connector form LC\PC(customizable) Monitoring port RJ45, RS-232 Working power AC:85~265V Operating temperature -5 ~ +55℃ Storage temperature -40 ℃ ~ +85 ℃ Chassis size 270mm X 190mm X 135mm
Company Contact:
- Phone: 8607713121055
- Address: Room 3-3, No. 17 MingYang Fifth Road, MingYang Industrial Area, Wuxu Town, Nanning, China
- Email:
- Website: https://www.xhphotoelectric.com
Published date: January 28, 2023
- Business Description: Optical Switch, OLP, optical-power signal acquisition equipment, VOA, stable optical sources, wavelength division multiplexers, circulators, optical fiber collimators, optical fiber jumpers, optical cable monitoring systems, distributed optical fiber temperature measurement systems (DTS),FBG sensors optical fiber grating sensors and other optical communication products.
