Ykd 801469nl Direct Substitute Ss 748804s Gy Pg4 Bz - China

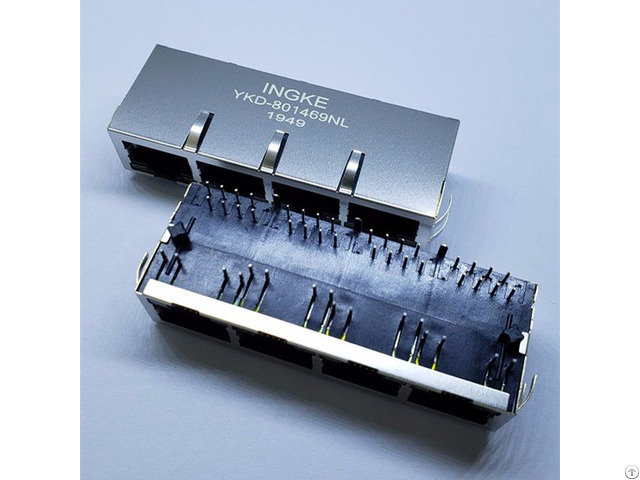

INGKE YKD-801469NL Direct Substitute SS-748804S-GY-PG4-BZ Through Hole 4 Port RJ45 Jack Modular Connector 8p8c Part Number: SS-748804S-GY-PG4- BZ

Made in China: YKD-801469NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Number of Positions/Contacts: 8p8c (RJ45, Ethernet)

Packaging: Tray

Connector Type: Jack

Number of Ports: 4

Number of Rows: 1

Mounting Type: Through Hole

Orientation: 90°Angle (Right)

Termination: Solder

LED Color: Green - Yellow

Shielding: Shielded, EMI Finger

Features: Board Guide

Tab Direction: Down

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness: 30µin (0.76µm)

Shield Material: Copper Alloy

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;

SS-6488S-A-FLS-01 SS64800-055F SS-6488S-A-PG4-1-BA SS64800-048F SS-6546-FLS SS70100-023F SS-6488S-A-PG4-1-BA-50 SS64800-057F SS-6488S-A-NF-K1 SS64100-059F SS-7488S-RG-PG4-BA SS64100-026F SS-700810S-A-NF-1-BB SS64800-060F SS-7488S-GG-PG4-BA SS-700810S-A-PG4-BA-50

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
