Ykjv 8124nl Hfjv1 2450 L12 Vertical 1 Port Magnetic Rj45 Connectors 100 Base T - China

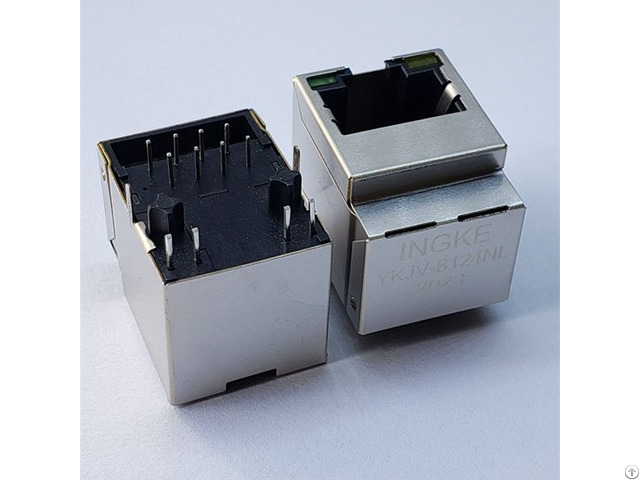

INGKE YKJV-8124NL Direct Substitute HFJV1-2450-L12 Vertical 1 Port Magnetic RJ45 Connectors 100 Base-T Part Number: HFJV1-2450-L12 Made in China: YKJV-8124NL Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Product Category: Modular Connectors / Ethernet Connectors Packaging: Tray Connector Type: RJ45 Number of Ports: 1 Number of Rows: 1 Applications: 10/100 Base-T, AutoMDIX Mounting Type: Through Hole Orientation: Vertical Termination: Solder LED Color: Green - Yellow Number of Cores per Jack: 4 Shielding: Shielded Features: Board Guide Tab Direction: User Selectable Contact Material: Phosphor Bronze Contact Finish: Gold Operating Temperature: -40℃~85℃ Flammability Rating: UL 94 V-0 Contact Finish Thickness: 15µin (0.38µm) Shield Material: Copper Alloy Housing Material: Thermoplastic Ingke Technology Mass production of the following models;

HFJT1-1G46RL HFJT1-1G46-L11RL HFJT1-1G46-L12RL HFJT1-E1G01RL HFJT1-E1G01-L11RL HFJT1-E1G01-L12RL HFJT1-E1G06RL HFJT1-E1G06-L11RL HFJT1-E1G06-L12RL HFJT1-E1G11RL HFJT1-E1G11-L11RL HFJT1-E1G11-L12RL HFJT1-E1G16RL HFJT1-1G01-L12RL HFJT1-1G06RL HFJT1-1G06-L11RL HFJT1-1G06-L12RL HFJT1-1G11RL HFJT1-1G11-L11RL HFJT1-1G11-L12RL HFJT1-1G16RL HFJT1-1G16-L11RL HFJT1-1G16-L12RL HFJT1-1G41RL HFJT1-1G41-L11RL HFJT1-1G41-L12RL

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
