Beneswitch Micro Push Button Tactile Switch - China

price: check with company for price

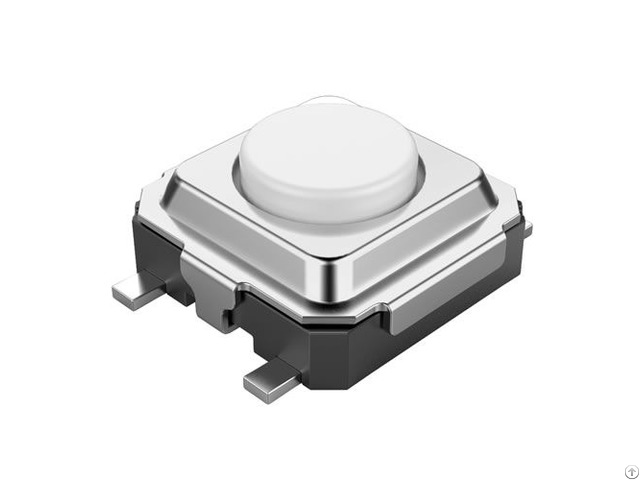

Beneswitch Micro Push Button Tactile Switch

Products Photos Catalog Beneswitch Micro Push Photos Catalog

Name: THAF03

Series: 3x3 series

Features: miniature

Size: 3.35 x3.35 x1.5/2.0 mm The basic parameters

1 - Rated power: 50mA DC12V

2 - The insulation resistance: 100 m or more Ω

3 - Insulation strength: AC250V 1Minute

4 - The temperature ranges: - 30 ℃ to + 85 ℃

5 - Life span: 100, 000 Cycles

6 - Stroke: 0.20 0.1mm The welding conditions Please weld according to the above conditions

Note: the above mentioned conditions is the surface temperature of the parts on the PWB, such as material, size, thickness of PWB, PWB from switch surface temperature can make a big production is different, therefore, be careful not to let the switch surface temperature over 260 ℃


Company Contact:


  • Phone: 18158778630

  • Address: Danbanqiao Village, Hongqiao Town, Yueqing City, Wenzhou , Zhejiang Province, China

  • Email: Email

Published date: April 6, 2019

  • Business Description: We are a professional manufacturer of light touch switch, and produce micro switch, dial switch, DIP switch, etc.

    we are manufactory, we are the source.

    The main customers are: Panasonic, GoerTek, Hisense, TCL and other well-known enterprises at home and abroad.

    We're willing to give you offer as per your request.

    Welcome to visit our factory.

    Thank you
