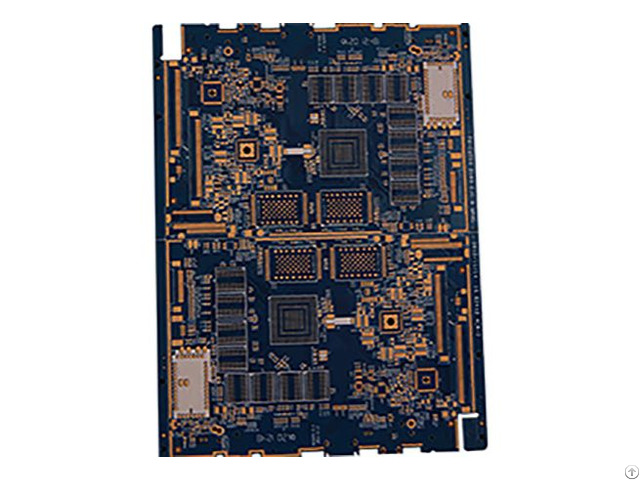

4 layer 0.25mm thickness black oil resistance PCB

black oil resistance PCB, 4 layer PCB, Multilayer PCB 1) Thickness: 0.1mm-5mm

2) Minimum linewidth：0.075mm/3mil

3) Minimum gap：0.065/2.8mil

4) Minimum aperture inradium：0.15mm

5) Minimum aperture external diameter：0.45mm

6) Minimum BGA: 0.2mm

7) Layer：4 layers through hole non-impedance

All multilayer boards are printed with 36t screen, the resistance welding oil is 50 tons thicker than the traditional 43t, which provides reliability guarantee for the bga and more precise fine lines.
