Flc 500 Pmd Series Rock Shaker Screen For Drilling Waste Management Equipment - China
price: check with company for price

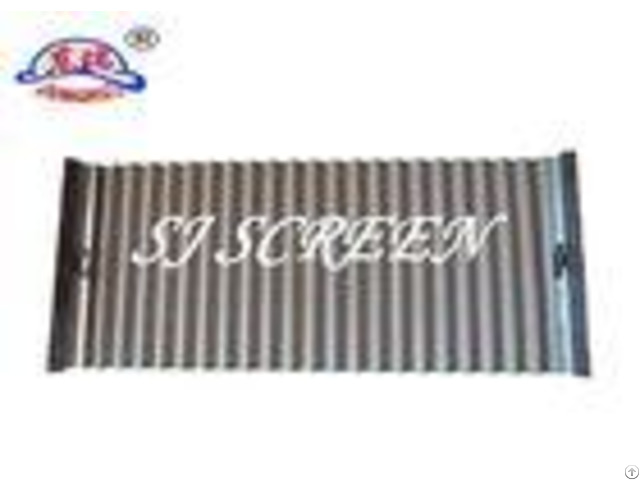

Product name: FlC 500 PMD series Rock Shaker Screen for drilling waste management equipment Size: 1050*695mm Material: SS316 Colour: Green Weight: 7 KGS Wire cloth Layers: 2 or 3 Layers Mesh count: 20-325mesh Usage: Liquid Filter 2: Technical Specifications - - - - Item | API RP 13C Designation | layers | Cut Point 100(micron) | Conductance: kd/mm | Non-Blanked Area: sq.
ft | Weight (Kg) | Dimensions (W" x L") | Mesh Type | 500 Wave Typed Shale Shaker Screen | API 35 | 2/3 | 477.5 | 7.35 | 6.96 | 7.5 | 695*1050mm | DX/XL | API 40 | 2/3 | 411.7 | 7.00 | 6.96 | 7.5 | 695*1050mm | DX/XL | API 45 | 2/3 | 341.1 | 6.15 | 6.96 | 7.5 | 695*1050mm | DX/XL | API 50 | 2/3 | 288.5 | 5.44 | 6.96 | 7.5 | 695*1050mm | DX/XL | API 60 | 2/3 | 243.7 | 4.29 | 6.96 | 7.5 | 695*1050mm | DX/XL | API 70 | 2/3 | 202.7 | 3.53 | 6.96 | 7.5 | 695*1050mm | DX/XL | API 80 | 2/3 | 170.4 | 2.89 | 6.96 | 7.5 | 695*1050mm | DX/XL | API 100 | 2/3 | 142.0 | 2.14 | 6.96 | 7.5 | 695*1050mm | DX/XL | API 120 | 2/3 | 117.8 | 1.69 | 6.96 | 7.5 | 695*1050mm | DX/XL | API 140 | 2/3 | 104.0 | 1.76 | 6.96 | 7.5 | 695*1050mm | DX/XL | API 170 | 2/3 | 85.4 | 1.24 | 6.96 | 7.5 | 695*1050mm | DX/XL | API 200 | 2/3 | 73.3 | 0.92 | 6.96 | 7.5 | 695*1050mm | DX/XL | API 40 | 2/3 | 445.1 | 8.60 | 7.19 | 7.5 | 695*1050mm | HP/XR | API 45 | 2/3 | 331.4 | 6.64 | 7.19 | 7.5 | 695*1050mm | HP/XR | API 50 | 2/3 | 276.0 | 5.74 | 7.19 | 7.5 | 695*1050mm | HP/XR | API 60 | 2/3 | 238.4 | 5.31 | 7.19 | 7.5 | 695*1050mm | HP/XR | API 70 | 2/3 | 197.7 | 4.55 | 7.19 | 7.5 | 695*1050mm | HP/XR | API 80 | 2/3 | 166.6 | 3.43 | 7.19 | 7.5 | 695*1050mm | HP/XR | API 100 | 2/3 | 142.7 | 3.03 | 7.19 | 7.5 | 695*1050mm | HP/XR | API 120 | 2/3 | 117.8 | 2.33 | 7.19 | 7.5 | 695*1050mm | HP/XR | API 140 | 2/3 | 100.6 | 1.72 | 7.19 | 7.5 | 695*1050mm | HP/XR | API 170 | 2/3 | 88.4 | 1.33 | 7.19 | 7.5 | 695*1050mm | HP/XR | API 200 | 2/3 | 71.7 | 1.06 | 7.19 | 7.5 | 695*1050mm | HP/XR | API 230 | 2/3 | 61.0 | 0.59 | 7.19 | 7.5 | 695*1050mm | HP/XR | API 270 | 2/3 | 52.5 | 0.54 | 7.19 | 7.5 | 695*1050mm | HP/XR | API 325 | 2/3 | 44.5 | 0.61 | 7.19 | 7.5 | 695*1050mm | HP/XR | - - - - 3 - Our products
Company Contact:
- Posted By: Anping Shengjia Hardware Mesh Company
- Phone: 86-318-7611628
- Address: Huangcheng Industrial Zone,Anping ,Hengshui,Hebei,CHINA, Hengshui , Hebei , China
- Email:
- Website: https://www.rockshakerscreen.com
Published date: February 1, 2018
- Business Description: Anping Shengjia Hardware & Mesh Co., Ltd. is one of the leading manufacturers of Wire Mesh, wire fence as well as all kinds wire products.
Our company always adheres to using the high-quality raw material, being responsible to the control of quality and establishing the principle-with quality to survival, with credibility to development.
