Halo Hfj11 2450e Ls12rl Rj45 Connector - China

price: 0.48 Dollar US$

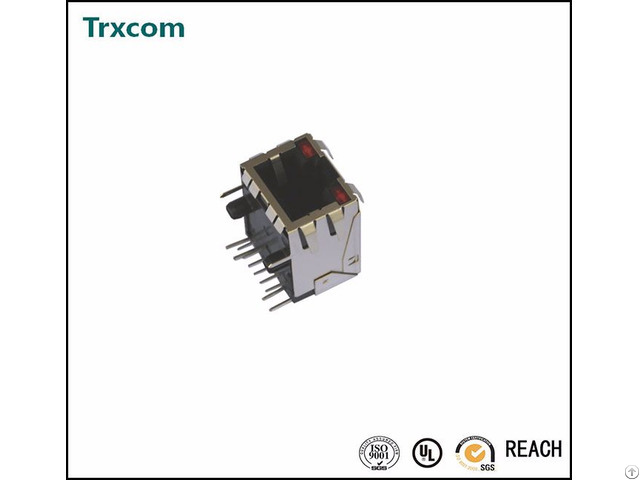

Halo Hfj11 2450e Ls12rl Rj45 Connector

Products Photos Catalog Halo Hfj11 2450e Photos Catalog

Trj0011abnl=hfj11-2450e-l s12rl

100base-t transformer

with led and emi-finger

single port

led: green & yellow

tab: down

pin type: solder

length: 21.3mm

ul, rohs, reach, iso9001: 2008

1 - meets ieee 802.3 specification

2 - connector materials:

housing material: thermoplastic pbt+30%g.

f ul94v-0

contact material: phosphor bonze c5210r-eh thickness=0.35mm

pins: brass c2680r-h thickness: 0.35mm

shield: sus 201-1/2h thickness=0.2mm

contact plating: gold 6 micro-inches min.

in contact area.

3 - wave solder tip temperature: 265℃ max, 5 sec max

4 - ul certification: file number e321120


Company Contact:


  • Phone: 8613554918626

  • Address: Minzhi Town, Longhua District, shenzhen , Guangdong , China

  • Email: Email

Published date: August 30, 2016

  • Business Description: The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.

    1) 10/100/1000M LAN pulse transformer and filter

    2) RJ45 connector with 10/100/1000M magnetic

    3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer

    4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
