Ro4003 Rogers Fr4 Mix Laminate High Frequency Pcb Circuit Boards - China

price: contact company for price

Special:

Material: Rogers 4003C 0.203mm+FR4

Special requirements: blind hole

0.1mm BGA hole need to be filled

Rogers 4003C fr4 Stack up files:

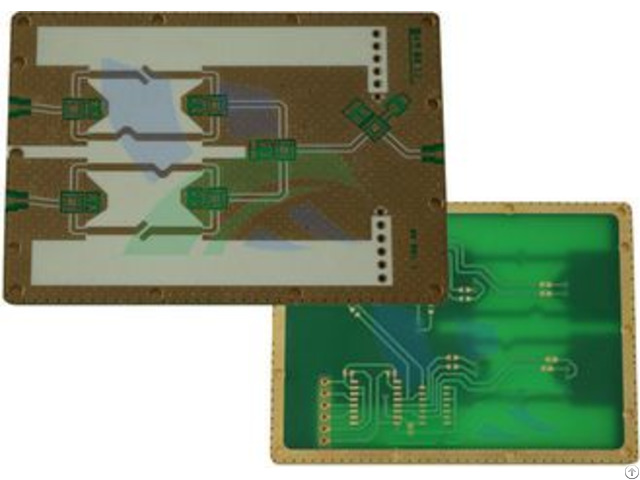

6 Layer RO4003 Rogers fr4 Mix Laminate High Frequency PCB Circuit Boards

Quick detail:

Model: XCEBR-6

Size: 16*5cm

Copper THK: 35UM

Color: Green

Surface finish: Immersion gold, ENIG

6 layer 0.693mm thickness

Green solder mask, white silk screen

Line space and width: 6mil

Certification: ISO9001/ SGS/UL

Delivery time: 7 working days

Application:

Automotive, Backplanes, RF / Microwave, High End Computing

Signal Integrity, Medical, Military, Mobile Devices / Wireless Handsets

Railway, Servers, Switches/Routers, Thermal Management, Wireless Infrastructure

Rogers 4003 PCB Testing Procedures For PCB Board

---We perform multiple quality assuring procedures before shipping out any PCB board.

These include:

* Visual Inspection

* Flying probe

* Bed of nails

· * Impedance control

· * Solder-ability detection

* Digital metallograghic microscope

· *AOI (Automated Optical Inspection)

High Frequency Rogers 6-layer PCB

Based on a variety of parameters, HF signals are reflected on circuit board, meaning that the impedance (dynamic resistance) varies with respect towards the sending component.

To prevent such capacitive effects, all parameters must be exactly specified, and implemented with the highest amount of approach manage.

Vital for the impedances in high frequency printed circuit boards are principally the conductor trace geometry, the layer buildup, along with the dielectric continuous (er) on the supplies applied.

Materials used for HF circuit boards

For many applications, it is sufficient to use Rogers material with an appropriate layer buildup.

In addition, we process high-frequency materials with improved dielectric properties.

These have a very low loss factor, a low dielectric constant, and are primarily temperature and frequency independent.

Additional favourable properties are high glass transition temperature, an excellent thermal durability, and very low hydrophilic rate.

We use (among others) Rogers or PTFE materials (for example, Teflon from DuPont) for impedance controlled high frequency circuit boards.

Sandwich buildups for material combinations are also possible.

The increasing complexity of electronic components and switches continually requires faster signal flow rates, and thus higher transmission frequencies.

Because of short pulse rise times in electronic components, it has also become necessary for high frequency (HF) technology to view conductor widths as an electronic component.


Company Contact:


  • Phone: 0755-26055813

  • Address: Xixiang , ShenZhen , GuangDong , China

  • Email: Email


Published date: September 18, 2016

  • Business Description: Xinchenger Electronics co., Ltd established in 2009, we have committed ourselves to manufacturing various of hi-frequency microwave pcb and multi-layer board including fastest sample production.

    We continuously enaged in researching special and high precision printed circuit boards

    with strong production capability of 2 to 28 layers of highly precise impedence, multi-layer blind buried,

    multi-layer, high TG, copper substrate, mix-compression, ceramic substrate PCB.

    Our company's sufficient stocks as follow:

    ROGERS, TACONIC, ARLON, ISOLA, F4B, TP-2, FR-4.

    Following are some types introduction for Rigid PCB and High Frequency PCB:

    FR4 PCB(2layer, 4 layer, multilayer)

    Rogers (RO4003, RO4350, RO5880, RO3003, RO3010, RO3206, RO3035, RO6010)

    F4B high frequency pcb board

    Taconic(TLX-8, TLX-9, TLC-32, TLY-5, RF-60A, CER-10, RF-30, TLA-35)

    Arlon high frequency pcb board

    ISOLA high frequency pcb board

    At the same time, we also provide corresponding PCBA services as our customers design and requirement.

    Sincerely look forward to cooperating with you.

    If you have a product quotation, please do not hesitate to contact us, thank you!
