Trj0006bbnl Rj45 Connector - China

price: 0.62 Dollar US$

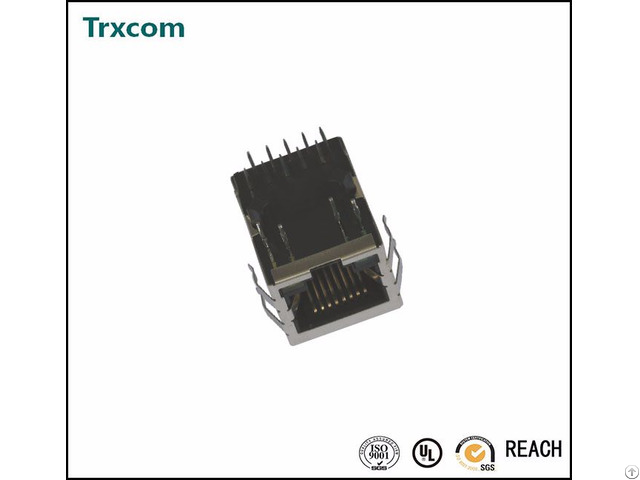

Trj0006bbnl Rj45 Connector

Products Photos Catalog Trj0006bbnl Rj45 Photos Catalog

10/100Base-T RJ45 Jack

Tab down

With Led, No emi-fnger

Led: Green & Yellow

Single Port

Length= 21.25mm

Pin type: the soldering

UL, Reach, RoHs, ISO9001: 2008

Free sample available for testing

1 - Designed to support application, such as SOHO (ADSL modems), Lan-on-motherboard (LOM), hub and switches.

2 - Meets IEEE 802.3 specification

3 - Connector Materials:

Housing Material: Thermoplastic PBT+30%G.

F UL94V-0

Contact Material: Phosphor Bonze C5210R-EH Thickness=0.35mm

Pins: Brass C2680R-H Thickness=0.35mm

Shield: SUS 201-1/2H Thickness=0.2mm

Contact plating: Gold 6 micro-inches min.

In contact area.

4 - Wave solder tip temperature: 260℃ Max, 5 Sec Max

5 - UL Certification: File Number E321120


Company Contact:


  • Phone: 8613554918626

  • Address: Minzhi Town, Longhua District, shenzhen , Guangdong , China

  • Email: Email

Published date: August 30, 2016

  • Business Description: The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.

    1) 10/100/1000M LAN pulse transformer and filter

    2) RJ45 connector with 10/100/1000M magnetic

    3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer

    4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
