    • Trj0025abnl Rj45 Modular Jack - China

    price: 0.62 Dollar US$

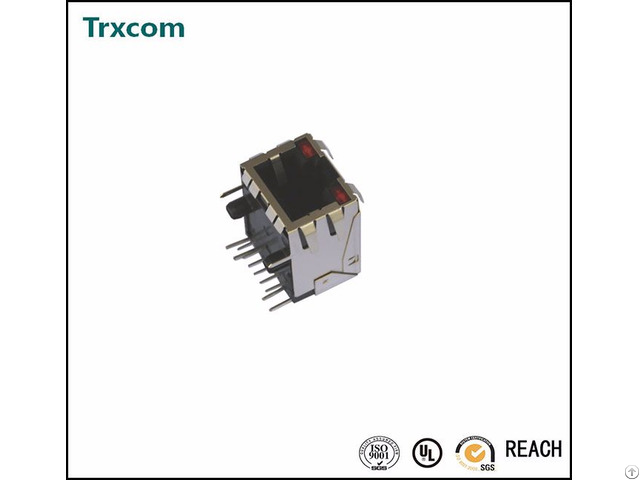

    Trj0025abnl Rj45 Modular Jack

    Products Photos Catalog Trj0025abnl Rj45 Photos Catalog

    10/100Base-T RJ45 Modular Jack

    Tab Down

    With led with emi

    Led: Green + Yellow

    Single Port

    Length=21.25mm

    Pin type: the solder

    UL, Reach, RoHs, ISO9001: 2008

    Free sample available for approval

    1 - Meets IEEE 802.3 specification

    2 - Connector Materials:

    Housing Material: Thermoplastic PBT+30%G.

    F UL94V-0

    Contact Material: Phosphor Bonze C5210R-EH Thickness=0.35mm

    Pins: Brass C2680R-H Thickness= 0.35mm

    Shield: SUS 201-1/2H Thickness=0.2mm

    Contact plating: Gold 6 micro-inches min.

    In contact area

    3 - Wave solder tip temperature: 265℃ Max, 5Sec Max

    4 - UL Certification: File Number E321120


    Company Contact:


    • Phone: 8613554918626

    • Address: Minzhi Town, Longhua District, shenzhen , Guangdong , China

    • Email: Email

    Published date: August 30, 2016

    • Business Description: The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.

      1) 10/100/1000M LAN pulse transformer and filter

      2) RJ45 connector with 10/100/1000M magnetic

      3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer

      4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
