Trjd5011benl Vertical Rj45 Connector With 10 100 Base Tx Integrated Magnetics - China

price: 0.68 Dollar US$

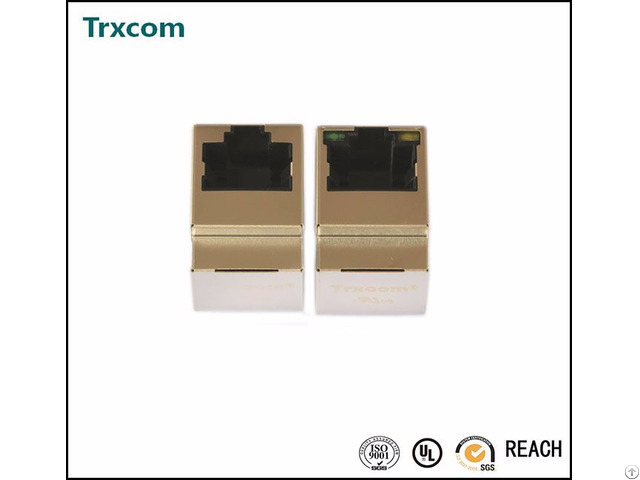

Trjd5011benl Vertical Rj45 Connector With 10 100 Base Tx Integrated Magnetics

Products Photos Catalog Trjd5011benl Vertical Photos Catalog

10/100 Base-T Magnetic

Vertical RJ45 Connector

With Led and Non-EMI Finger

Led: Green & Yellow

Single Port

Tab Up

Pin type: The solder

UL, RoHs, Reach, ISO9001: 2008

Free sample available for testing

1 - Meets 802.3 specification

2 - Connector Materials:

Housing Material: Thermoplastic PBT+30% G.

F UL94V-0

Contact Material: Phosphor Bonze C5210R-EH Thickness=0.35mm

Pins: Brass C2680R-H Thickness=0.35mm

Shield: Copper alloy Brass H65Y Thickness=0.2mm

Contact plating: Gold 6 micro-inches min.

In contact area.

3 - Wave solder tip temperature: 265℃ Max, 5 Sec Max

4 - UL Certification: File Number E321120


Company Contact:


  • Phone: 8613554918626

  • Address: Minzhi Town, Longhua District, shenzhen , Guangdong , China

  • Email: Email

Published date: August 30, 2016

  • Business Description: The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.

    1) 10/100/1000M LAN pulse transformer and filter

    2) RJ45 connector with 10/100/1000M magnetic

    3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer

    4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
