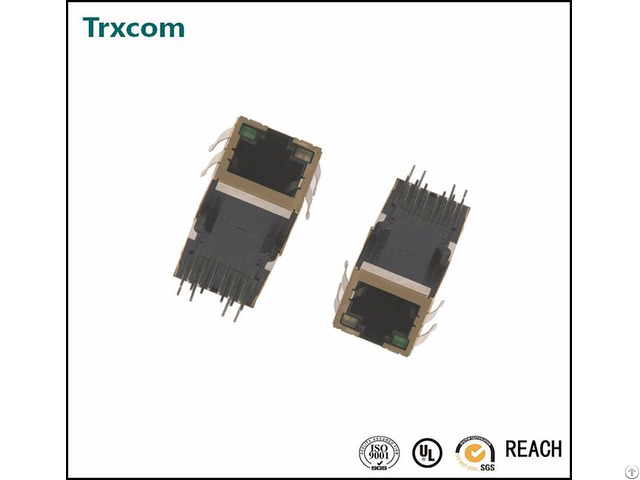

Trjk0071awnl Single Port Gigabit Tab Up Rj45 Connector - China

price: 0.76 Dollar US$

Trjk0071awnl Single Port Gigabit Tab Up Rj45 Connector

Products Photos Catalog Trjk0071awnl Port Photos Catalog

1000Base-T RJ45 Modular Jack

With led with emi-finger

Led: Green & Green

Tab Up

Single Port

Length= 32.50mm

Pin type: the solder

RoHs, Reach, UL, ISO9001: 2008

1 - Meets IEEE 802.3 specification

2 - Connector Materials:

Housing Material: Thermoplastic UL94V-0

Contact/ Shield: Copper alloy

Shield plating: Nickel

Contact plating: Gold 6 micro-inches min.

In contact area.

3 - Wave solder tip temperature: 260℃ Max, 5 Sec Max

4 - UL Certification: File Number E321120


Company Contact:


  • Phone: 8613554918626

  • Address: Minzhi Town, Longhua District, shenzhen , Guangdong , China

  • Email: Email

Published date: August 30, 2016

  • Business Description: The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.

    1) 10/100/1000M LAN pulse transformer and filter

    2) RJ45 connector with 10/100/1000M magnetic

    3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer

    4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
