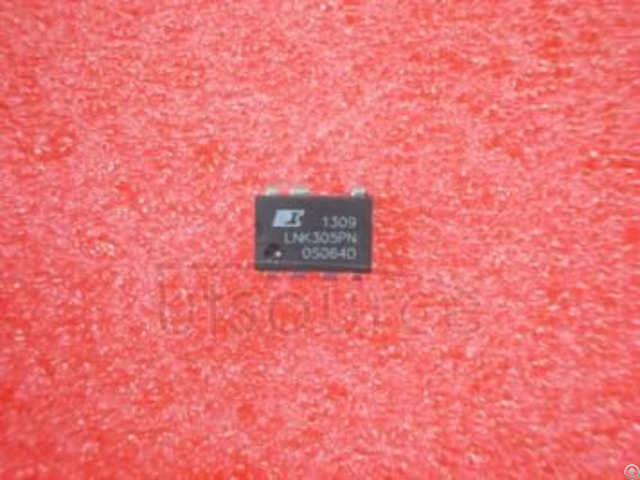

Utsource Electronic Components Lnk305pn - China
price: 0.60 Dollar US$
1 - Description
LinkSwitch-TN is specifically designed to replace all linear and capacitor-fed (cap dropper) non-isolated power supplies in the Table 1 - Notes: 1 - Typical output current in a non-isolated buck converter.
Output power capability depends on respective output voltage.
See Key Applications Considerations Section for complete description of assumptions, including fully discontinuous conduction mode(DCM) operation.
2 - Mostly discontinuous conduction mode.
3 - Continuous conduction mode.
4 - Packages: P: DIP-8B, G: SMD-8B.
For lead-free package options, see Part Ordering Information.
under 360 mA output current range at equal system cost while offering much higher performance and energy efficiency
2 - Features
> Supports buck, buck-boost and flyback topologies
> System level thermal overload, output short-circuit and open control loop protection
> Excellent line and load regulation even with typical configuration
> High bandwidth provides fast turn-on with no overshoot
> Current limit operation rejects line ripple
> Universal input voltage range (85 VAC to 265 VAC)
> Built-in current limit and hysteretic thermal protection
> Higher efficiency than passive solutions
> Higher power factor than capacitor-fed solutions
> Entirely manufacturable in SMD
