Utsource Electronic Components Rjp63f3 - China

price: 0.38 Dollar US$

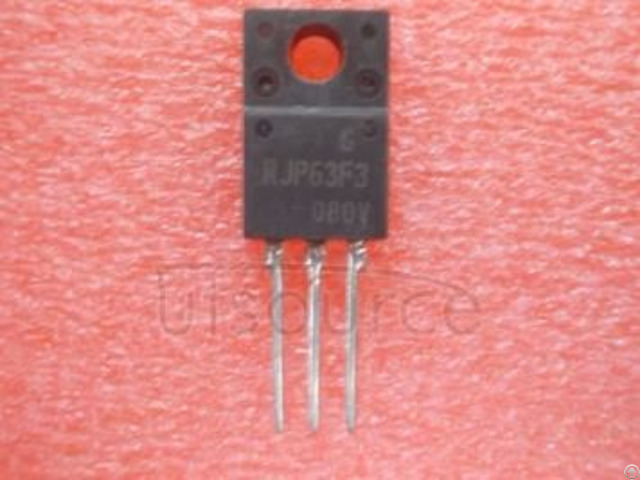

Utsource Electronic Components Rjp63f3

Products Photos Catalog Utsource Electronic Photos Catalog

1 - Description

Collector to emitter voltage VCES 630 V Gate to emitter voltage VGES ±30 V Collector current IC 40 A Collector peak current ic(peak) Note1 200 A Collector dissipation PC Note2 30 W Junction to case thermal impedance θj-c 4.17 °C/ W Junction temperature Tj 150 °C Storage temperature Tstg –55 to +150 °C

2 - Features

> Trench gate and thin wafer technology (G6H series)

> Low collector to emitter saturation voltage VCE(sat) = 1.7 V typ

> High speed switching tf = 100 ns typ

> Low leak current ICES = 1 μA max

> Isolated package TO-220FL


Company Contact:


  • Phone: 0755-23959113

  • Address: 10B2,BLOCK B,WORLD TRADE PLAZA,FUHONGA RD.,FUTIAN,SHENZHEN,51803 3 CHINA 电话:0755-23959113, SHENZHEN , GUANGDONG , China

  • Email: Email


Published date: April 19, 2017

  • Business Description: UTSOURCE is an amazing online electronic components store，provides different types such as electronic components , passive components, arm development board, Cell Phone Repair Parts，etc., and various product types，we also provide satisfying one-stop package service for customers.
