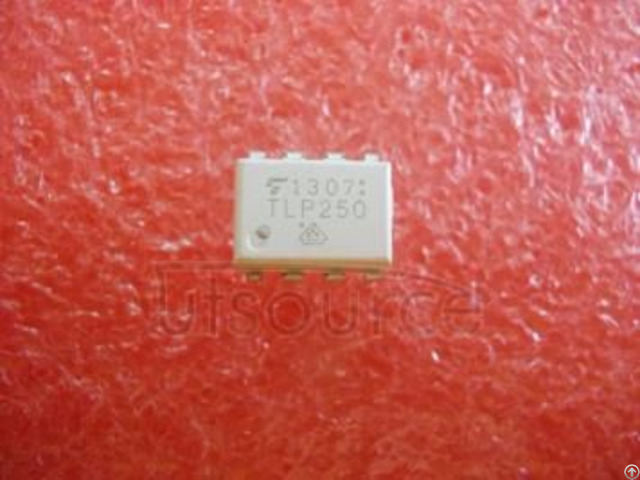

Utsource Electronic Components Tlp250 - China
price: 0.31 Dollar US$
Description
The TOSHIBA TLP250 consists of a GaAlAs light emitting diode and a integrated photodetector.
This unit is 8?lead DIP package.
TLP250 is suitable for gate driving circuit of IGBT or power MOS FET.
Features
Input threshold current: IF=5mA(max.
)
Supply current (ICC): 11mA(max.
)
Supply voltage (VCC): 10?35V
Output current (IO): ±1.5A (max.
)
Switching time (tpLH/tpHL): 1.5μs(max.
)
Isolation voltage: 2500Vrms(min.
)
UL recognized: UL1577, file No.
E67349
Option (D4) type VDE approved: DIN VDE0884/06.92, certificate No.
76823 Maximum operating insulation voltage: 630VPK Highest permissible over voltage: 4000VPK
Creepage distance: 6.4mm(min.
) Clearance: 6.4mm(min.
)
