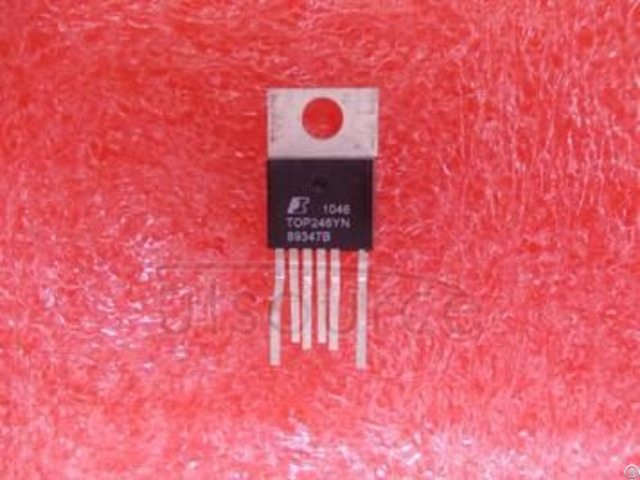

Utsource Electronic Components Top246yn - China
price: 0.60 Dollar US$
1 - Description
TOPSwitch-GX uses the same proven topology as TOPSwitch, cost effectively integrating the high voltage power MOSFET, PWM control, fault protection and other control circuitry onto a single CMOS chip.
Many new functions are integrated to reduce system cost and improve design?exibility, performance and energy ef?ciency.
Depending on package type, either 1 or 3 additional pins over the TOPS witch standard DRAIN, SOURCE and CONTROL terminals allow the following functions: line sensing (OV/UV, line feed-forward/DC reduction), accurate externally current limit, remote ON/OFF, synchronization to an external lower frequency, and frequency selection (132 kHz/66 kHz)
2 - Features >Extended power range for higher power applications
>No heatsink required up to 34 W using P package
>Features eliminate or reduce cost of external components
>Fully integrated soft-start for minimum stress/overshoot
>Externally programmable accurate current limit
>Wider duty cycle for more power, smaller input capacitor
>Separate line sense and current limit pins on Y/R/F
Company Contact:
- Posted By: utsource
- Phone: 0755-23959113
- Address: 10B2,BLOCK B,WORLD TRADE PLAZA,FUHONGA RD.,FUTIAN,SHENZHEN,51803 3 CHINA 电话:0755-23959113, SHENZHEN , GUANGDONG , China
- Email:
- Website: https://www.utsource.net
Published date: May 5, 2017
- Business Description: UTSOURCE is an amazing online electronic components store，provides different types such as electronic components , passive components, arm development board, Cell Phone Repair Parts，etc., and various product types，we also provide satisfying one-stop package service for customers.
