Waved Type Oil Vibration Shale Shaker Screen For Mud Separation - China

Waved Type Oil Vibration Shale Shaker Screen for Mud Separation 1 - Products Description - - - -

Products Names | Waved Type Oil Vibration Shale Shaker Screen for Mud Separation | Dimension | 1050*700mm, 1050*695mm, 1050*697mm | Mesh Range | API20-API325 | Mesh Hole | Rectangular | Weight | About 6.0kgs | Certification | ISO9001: 2008 | Filter Rating | 90%-96% | Packing Details | Usually 2 or 4 pieces in the carton, then carton inside, wooden case outside.

And other packing we can accept as your request.

| MOQ | 5 Pieces | Payment | T/T(first accept), D/P, L/C, Western Union | Application | Be widely used in oil and gas drilling, sand control, coal mine, filter liquid.

Usually be used on shale shakers and different shaker need different shaker screen for mud separation.

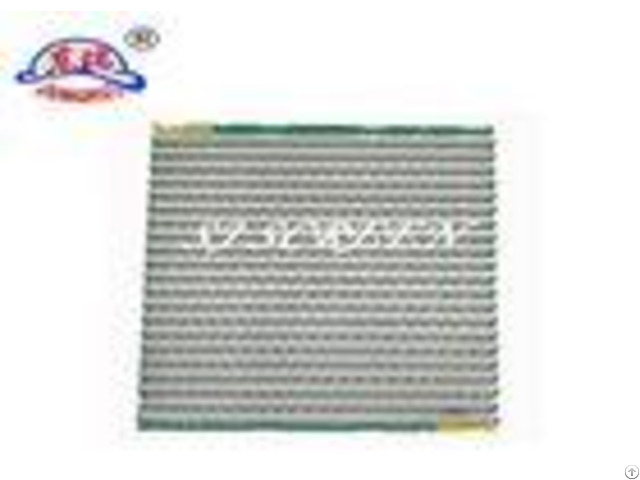

| Pictures | | - - - - 2 - Products Features Waved Type Oil Vibration Shale Shaker Screen is named by his special waved form.

Main feature as follows:

These products screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers, after compounded and bended, with a steel backing plate combined together.

The wire cloth and bottom steel baking plate combined tightly, increase the filtering area 120% to 150% more than hookstrip flat screen, get an better effective.

3 - Products Model - - - -

Model | Brand & Model for shaker | Mesh Range | Dimension

(LengthWidth ) | Weight(KGS) | SJZ-5 | WAVED FLC2000 | 20325 | 1053697mm

1050700mm

1050695mm | 6.0KGS | SJZ-6 | WAVED FLC500 SERIES | 20325 | 1050697mm

1050700mm

1050695mm | 7.8KGS | SJZ-7 | WAVED SCREEN | 20325 | 1165700mm | 6.5KGS | - - - - 4 - Products Application

Be widely used in oil and gas drilling, sand control, coal mine, filter liquid.

Usually be used on shale shakers and different shaker need different shaker screen for mud separation.

5 - Products Package Usually 2 or 4 pieces in the carton, then carton inside, wooden case outside.

And other packing we can accept as your request.
