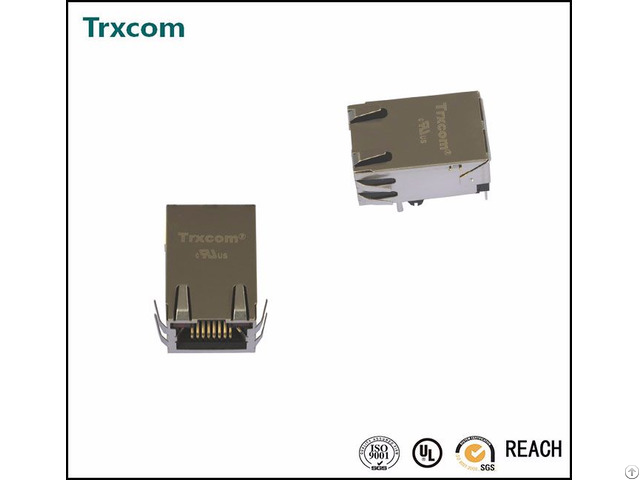

We 7499010121a Single Port Rj45 Connector - China
price: 0.56 Dollar US$
10/100Base-T RJ45 Jack
With Led with emi-finger
Led: Yellow & Green
Tab Up
Single Port
Length=25.25mm
Pin type: the soldering
UL, RoHs, Reach, ISO9001: 2008
Free sample available for testing
1 - Meets IEEE 802.3 specification
2 - Connector Materials:
Housing Material: Thermoplastic PBT+30%G.
F UL94V-0
Contact Material: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness: 0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.
In contact area.
3 - Wave solder tip temperature: 265℃ Max, 5 Sec Max
4 - UL Certification: File Number E321120
Company Contact:
- Posted By: Shenzhen Trxcom Electronics Co.,Ltd
- Phone: 8613554918626
- Address: Minzhi Town, Longhua District, shenzhen , Guangdong , China
- Email:
Published date: August 30, 2016
- Business Description: The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
1) 10/100/1000M LAN pulse transformer and filter
2) RJ45 connector with 10/100/1000M magnetic
3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer
4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
