Jf 3 Digital Display Oxygen Index Tester - China

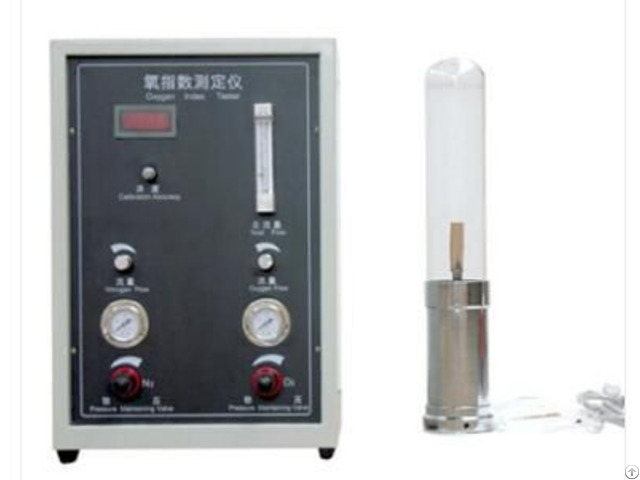

JF-3 Digital Display Oxygen Index Tester Textile Combustion Tester Oxygen Content Detector JF-3 Digital Display Oxygen Index Meter (the box material is divided into steel plate electrostatic spraying and frosted stainless steel, the price has a cost difference of 500 yuan, please confirm the price in advance if you need to place an order) 1 - Scope of application: It is suitable for the determination of the combustion performance of materials such as plastics, rubber, fibers, foamed plastics, soft sheets and films, and textiles 2 - Main technical parameters: 1 - Using jinkou oxygen sensor, the digital display of oxygen concentration does not need to be calculated, the precision is higher and more accurate, the range is 0-100 2 - Digital resolution: ±0.1% 3 - Measurement accuracy of the whole machine: 0.4 grade 4 - Flow adjustment range: 0-10L/min (60-600L/h) 5 - Response time: <5S 6 - Quartz glass cylinder: inner diameter ≥ 75㎜, height 480mm 7 - Gas flow rate in the combustion tube: 40mm±2mm/s 8 - The precision of the pressure gauge is 2.5, and the resolution is 0.01MPa 9 - Flow meter: 1-15L/min (60-900L/H) adjustable, precision 2.5 10 - Test environment: ambient temperature: room temperature ~ 40°C; relative humidity: ≤70%; 11 - Input pressure: 0.2-0.3MPa 12 - Working pressure: Nitrogen 0.05-0.15Mpa Oxygen 0.05-0.15Mpa Oxygen/nitrogen mixed gas inlet: Including pressure stabilizing valve, flow regulating valve, gas filter and mixing chamber.

13 - The sample holder can be used for soft and hard plastics, textiles, fire doors, etc.

14 - Ignition system, flame length 5mm-60mm can be adjusted freely 15 - Gas: nitrogen and oxygen for industrial use, purity > 99%; (user-provided).

16 - Power requirements: AC220 (+10%) V, 50HZ 17 - The maximum power used: 50W 18 - Igniter: It is made of a metal tube with a nozzle with an inner diameter of Φ2±1mm at the end, which can be inserted into the combustion cylinder to ignite the sample.

The flame length: 16±4mm, adjustable in size 19 - Self-supporting material sample clamp: it can be fixed on the axis of the combustion tube and can clamp the sample vertically 20 - Non-self-supporting material sample clamp: can fix the two vertical sides of the sample on the frame at the same time (optional textile film and other materials are applicable) 3 - Chassis and part structure: 1 - Control box: It is processed and formed by CNC machine tools.

The steel plate spray box is electrostatically sprayed.

The control part and the test part are controlled separately.

2 - Combustion cylinder: high temperature resistant high-quality quartz glass tube (inner diameter ￠75mm, length 480mm) outlet inner diameter: φ40mm 3 - Sample fixture: self-supporting fixture, and can clamp the sample vertically; (non-self-supporting sample rack is optional), two sets of sample clips meet different test requirements; sample clip plug-in type, place the sample Easier with style clips 4 - The diameter of the tube hole at the end of the long rod igniter is ￠2±1mm, and the flame length of the igniter (5-50) mm can be adjusted arbitrarily 5 - Design standard: GB/T 2406.2-2009 Compliant with standards: ASTM D 2863, ISO 4589-2, NES 714 GB/T 5454 GB/T 10707-2008 GB/T 8924-2005 GB/T 16581-1996 NB/SH/T 0815-2010 TB/T 2919-1998 IEC 61144-1992 ISO 15705-2002 ISO 4589-2-1996 ps: (WLJCDM809)
