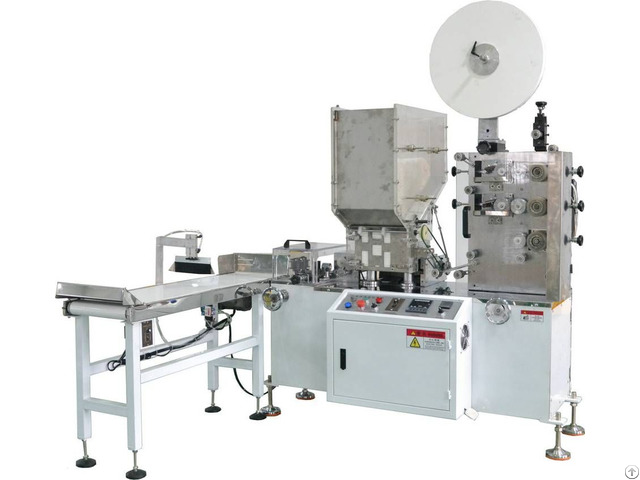

Straw Single Packing Machine - China

This machine is used to packing drinking straws in three sides sealing bag, printing function is available when using paper as packing material.

Characteristics:

1 - Having two colors printing device can be chosen

2 - With automatic product counting function, product quantity may pre-set, once the pre-set value is reached.

the machine will give an alarm.

And the dam-brush will separate each set quantity packaged straw.

3 - Printing, feeding, and packing can complete in one processing.

4 - Packing straw length is adjustable within a certain range.

Specification

Drink Straw Diameter(mm) 5-12mm Need change some parts.

Straw Length(mm) Standard: 190-210mm

Extra mould: 170-260mm

By change the sealing and cutting mold, printing cylinder

Packing Model Paper type: wrap paper

Sealing type: 3 side sealing

25-30mm；Paper width: 25-30mm

Production Speed With printing：300pcs/min

Without printing＞400pcs/min

Printing Printing Color：Double Colour

Printing type: flexographic

2.38mm; Thickness of plate (Including Two-sides Glue Paper): 2.28mm+double-sided adhesive 0.1mm(3M Brand)=2.38mm

Paper Unwinding Frame 1SET

Tension adjust：Mechanical tension device, adjusted by manual

Wrap paper roller core size：3inch, 4.7inch

Straw feeding hopper Material : Stainless steel frame, Plexiglass: Adjustable to match straw length

Straw down device：induction and swing arm

Feeding model：by chain feeding

Printing Unit Single/Double Color

Power transmission ：By chain Between printing unit: By gear

Traction unit：1sets, rubber roller and chrome plated roller Printing unit：Ink container, anilox roller, doctor blade, printing cylinder, rubber roller

Dry unit：1SET, by hot air, with temperature

color register：By manual

Sealing and Cutting Parts Lengthways sealing：Sealing roller-on couple, pressure adjusted by manual

Horizontal：Sealing roller-on couple, pressure adjusted by manual, with cutting knife-one couple
