Dr40x9 Ipq4019 Ipq4029 2x2 2 4ghz And 5g support Https  - China

Featuring with industrial-grade IPQ4019/IPQ4029 chipset Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module Support 4.940GHz to 5.825GHz Frequency Range

Support 2.400GHz to 2.482GHz Support 2 x 5G MMCX Connectors and 2x2.4G MMCX Support 5MHz/10MHz/20MHz/40MHz/80 MHz Bandwidth Support 11ABGN/AC Support fixed data rate

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

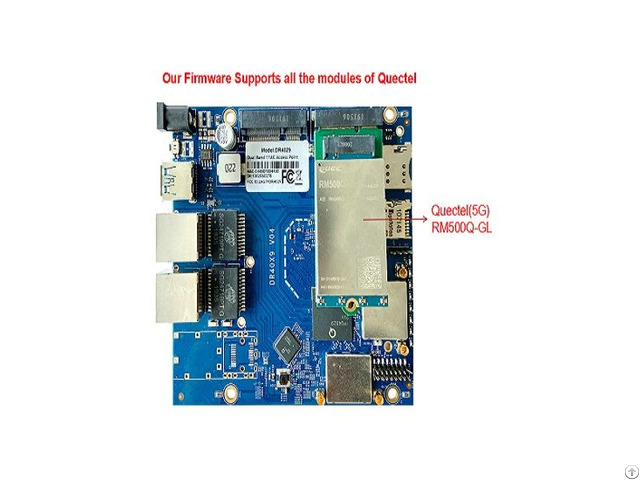

Our Firmware supports all the modules of Quectel

Absolute Maximum Rating Parameter Rating Unit

Supply Voltage 24V~48 V

Operating Temperature Range -40 to +70 ºC

Storage Temperature Range -45 to +105 ºC

Operating Humidity Range 5 to +95 (non-condensing) %

Storage Humidity Range 0 to +90 (non-condensing) % Hardware Specifications Symbol Parameter

CPU IPQ4029(Quad core ARM Cortex A7 at 716.8 MHz)

Antenna Connector 2 x 5G MMCX connectors;2x2.4G MMCX

10/100/1000Mbps Gigabit Ethernet 2xRJ45

SFP connector 1xSFP fiber module connector (optional)

3G/4G connector 1xminipcie 3G/4G connector support with two sim card

USB connector 1xUSB 3.0 connector

POE 24V~48V passive POE

DC Jack 24V~48V power supply

ROHS Compliance YES

Dimension 115mm x 105mm x 16mm

Max Power 48.1V x 0.180A= 8.658W

Nor Flash 2MB~32MB

Nand Flash 128MB

DDR 256MB~512MB
