Drc 5159 19d17f Dual Polarization Enclosure Antenna - China

price: 200.00 Dollar US$

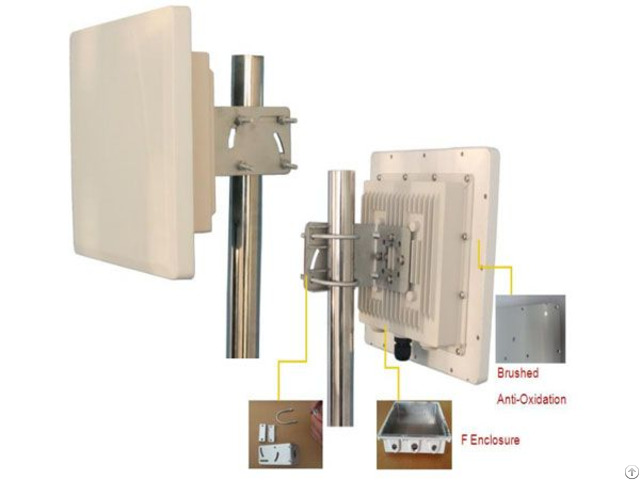

Drc 5159 19d17f Dual Polarization Enclosure Antenna

Products Photos Catalog Drc 5159 19d17f Dual Photos Catalog

Application

●5.1-5.8GHz 802.11a/n WLAN System

●Point to Point Wireless Bridge

●Wide 17° Horizontal Beamwidth

●IP66 Waterproof Level

●UV Protected and Durable ABS Radome

●Stainless L Type Bracket, U-Slot & U-Bolt

Electrical Specifications Frequency Range 5150-5850 MHz

Gain 19 dBi

VSWR ≤1.5

3dB Beam-Width 17°(H)/18°(E)

Polarization Vertical & Horizontal

Upper Side Lobes >13 dB (V Port), >10 dB (H Port)

Front to Back Ratio ≥30 dB

Port to Port Isolation >35 dB

Maximum Input Power 100 Watt

Impedance 50 Ω

Lightning Protection DC Grounded Mechanical Specifications Connector 2 × N Female

Inner Space 212.6×212.3×38 mm

Antenna Dimension 270×270×80 mm

Weight 2.5 KG

Radome Material UV Protected ABS

Enclosure Material Aluminium Die Cast

Mounting Mast Diameter Ø40~Ø60 mm

Operating Temperature -40° C to +65° C

Rated Wind Velocity 216 Km/h


Company Contact:


  • Phone: 17366272175

  • Address: 116 ChengYang Road, XiangCheng District, SuZhou City, JiangSu Province, China

  • Email: Email


Published date: November 21, 2021

  • Business Description: The company utilizes its own professional knowledge and the top research and development team unceasingly breaks through, we have the hardware, the software, the RF, the antenna, the enclosure and so on design ability.

    To provide customers with customized services, products from Design - Test -Certification - Production of one-stop convenient services.
