Internet Of Things Data Acquisition Equipment Handheld Uhf Reader Scanner - China

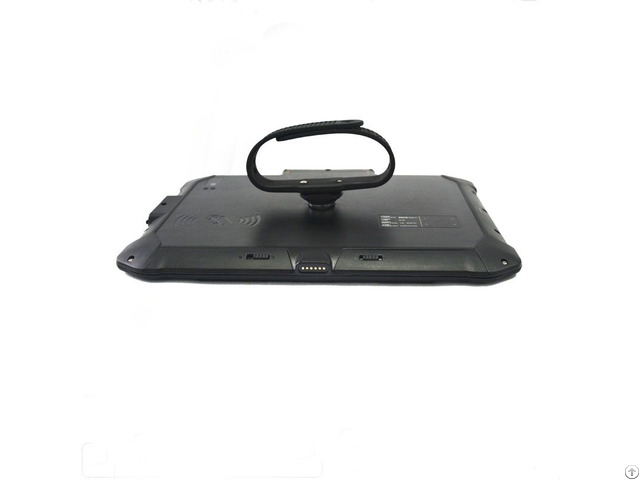

Internet of Things Data Acquisition Equipment Handheld UHF Reader Scanner

SD100 Basic Parameters

OS Android 8.1

CPU A53 8-Core 2Ghz

RAM 4GB

ROM 64GB

Expansion Micro SD (TF) card slot up to 128GB

Audio Built-in speaker, Dual silicon mic noise reduction

Keypad 12 keypads

Weight( with battery) 800g

Camera Camera Rear camera 13MP; Front camera 5MP

Focus mode Autofocus ; Front focus

Flash Support single color LED flash

Display Display 10inch IPS highling screen

Resolution 1200*1920 WUXGA

Portable RFID Reader China Touch Panel 5-point capacitive touch screen

Power Battery 9000mAh, Typical working hours > 10 hours

Charging support USB-TypeC, support fast charge, support OTG

Interface USB-TypeC, External extension interface Pogo(USB, serial port, IIC, charging etc), 3.5mmheadphone jack, charger interface Pogo

Communication Bluetooth BT4.0 BLE

WLAN WiFi 802.11 a/b/g/n 2.4G 5G

WWAN FDD-LTE B1/B3/B5/B8

TDD-LTE B38/B39/B40/B41

TDSCDMA B34/B39

WCDMA B1/B5

GSM B3/B5/B8

CDMA1x/CDMA2000 BC0

GPS GPS, GLONASS, BeiDou, AGPS, option UBLOX8030

Performance Operation Temperature -20℃ ~60℃

Storage Temperature -30℃ ~+80℃

Humidity 5%~95%(No condensation)

Sealing IP67

Drop Test In the operating range, 6 sides can withstand the impact of 1.5 meters drop to the concrete floor

Tumble Test 6 contact surfaces rolling for 1000 times/ 0.5M

ESD ±15kV Air Discharge, ±8kV Contact Discharge

Certificate CCC, CTA

Extensibility Barcode Scanner Honeywell 1D 2D Barcode scanning engine

Gstartgroup NFC RFID Reader NFC (PN548) Support NFC Reader/writer, ISO14443-A/B/F, ISO18092, FeliCa, MIFARE, ISO15693

RFID (UHF) Impinj R2000 860-960MHz ISO18000-6C (EPC Gen2) Reading distance Max 5m

Fingerprint /

PSAM support

Infrared Meter Reading /

Sensor

geomagnetism, acceleration, light perception distance, berometer(optional), gyroscope (optional) Package Details

(1) Professional export carton with protective foam, along with standard accessories per set.

(2) 5-layer quality carton

(3) Packed in conventional standards for every piece

(4) According to client’s requirements

(5) Standard accessories: battery1pc, usb data cable 1pc, charger1pc, protection cover 1pc

(6) 1pc weight 1kg – 2kg with package.

2d bar code readers supplier Service

Quality and reputation first are the sole purpose of our company.

Startech speak highly of offering good after-sale services to every client, and assure that we will do the best to meet with the requirements of our clients.

1 - Free SDK provided;

2 - Technical support by professional engineer;

3 - 13months warranty;

4 - Excellent After-sales service.

Company Contact:

• Posted By: Guangzhou Start Technology Co., Ltd.

• Phone: 15099789969

• Address: A403-15 Lanyue Renchuangke Zone, Juquan Road 3rd, Guangzhou , guangdong , China

• Email:

• Business Description: Guangzhou Startech Co.

  Ltd specialized in Commercial and Industrial Handheld Data Collector, wireless intelligent terminal, which has gained advance status in the fields of “Mobile Intelligent Terminal, ‘Internet of Things data acquisition equipment and ‘Industrial PDA.

  Startech handheld terminals are adopted flexible configuration with open platform and maninstream embedded Operating Systems like Android, integrated 1D/2D barcode scanner, LF/HF/UHF RFID reader, fingerprint reader, thermal printer, MSR, PSAM, 2.4G communication and IR meter reading function modules.

  Widely used in fields covering retail, logistics, manufacturing, transportation, government etc.

  all around the world.

  Our commission is to provide high quality, diversified PDA and excellent after-sale services to our partner.

  Specially we have the capability to offer ODM service, customization, technical support, warranty, SDK and relative service with a professional R&D team.

  Product line wins great positive feedback on quality and service from Unilever, Bossini, YJKD logistics, Hanting Hotel etc.

  among partner in South-North America, Europe, Asia, Mid-East Africa and other countries world-wide.

  We devote ourselves to providing appropriate hardware integrated solutions & services, cutting-edge technology products, to be your reliable mobile computing partner.

  Looking forward to building long-term business relationship with you.
