X8000 Series Load Modules - China

price: contact company for price

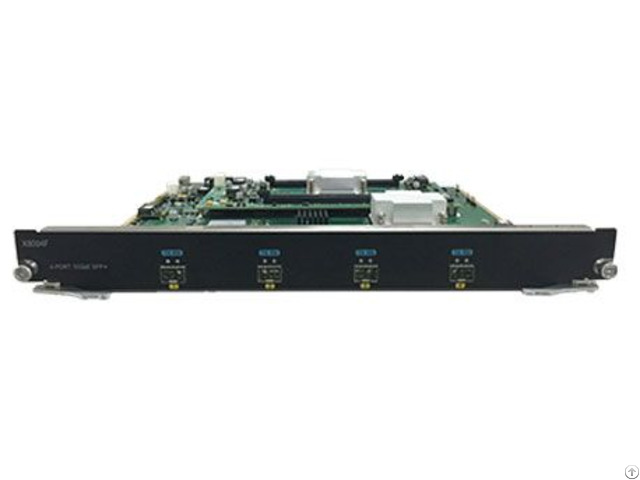

X8000 Series Load Modules

Network Testing Equipment

Network Test Modules

X8000 series test modules are high-performance professional load modules running on TestStorm series and support all the features of TestStorm platform.

X6000 Series deliver complete wire-speed traffic test and protocol emulation for network equipment and network systems to meet the testing requirements in each stage of R & D, experiment and qualit

X8000 series test modules are high-performance professional load modules running on TestStorm series and support all the features of TestStorm platform.

X6000 Series deliver complete wire-speed traffic test and protocol emulation for network equipment and network systems to meet the testing requirements in each stage of R & D, experiment and quality control.

X8000 series test modules support up to 8 x 10G COMBO ports and support Cross-chassis synchronizing to provide large-scale protocol emulation, performance test and mass traffic stress test of Layer 2-7 network device.

X8000 series modules support TeleExplorer, TeleAPP to meet different test needs.

TeleExplorer is a standard test suite providing L2-7 test functions with powerful and flexible configuration.

TeleAPP is a test suite to provide automated test of RFC2544 /2889/3918 with easy-to-use configuration and necessary test report output.

X6000 also support TCL and API to meet customized testing requirements.

SPECIFICATIONS

Model X8004F X8002F

Port Number 4 * 10G 2 * 10G

Port Rate SFP+:10G SFP+:10G

Physical Status Indicators: Tx/Rx

Weight: 0.5kg

Size: 271mm x 35.5mm x 180mm

Peak power requirement: 100W Max

Traffic Generation Traffic generating based on port and stream, per port have 256 different streams

Each stream provide up to 4 saltus step domain with mode of increase, decrease and random

Accurate data rate regulation based on port and stream, support dynamic data rate regulation based on port

Each stream is capable of generating packets of Layer2, IPv4, IPv6, TCP, UDP, TCP-IPv6, UDP-IPv6, ICMPv4, ICMPv6, IGMPv2, ARP, Pause, Goose and custom

Each stream support multiple levels of VLAN and MPLS

Signature block is optional in each stream

Each stream supports user-defined packets and packet length from 60B to 16KB

Payload generation mode: Cycle, Incremented, Random

Traffic Statistics Statistics results can be displayed in the form of data table and chart

Each port can receive up to 1024 streams

Traffic statistics based on streams:

TX/RX frame count, TX/RX rate count, RX frame Sequence miss count, RX frame IP payload check errors count, Maximum, minimum and average SF latency count, Maximum, minimum and average CT latency

Traffic statistics based on ports:

TX/RX frame count, TX/RX stream count, TX/RX rate count, RX frame IP header checksum errors count, RX frame FCS errors count, frames through user-defined filters count (filter patterns include VLAN, MPLS, PPPOE, ARP, IPv4, IPv6, TCP, UDP)

Traffic Capture Each port provides 512M bits capture buffer

RX data frame capture

TX/RX control frame capture

Frame capture based on filter templet

Decode hundreds of protocols

Support captured frame search according to specific conditions

Intuitive display of frames’ features such as source IP address, destination IP address, type of protocol and etc.

Protocol Emulation Layer 2-3 Protocol Emulation Integrated IPv4 and IPv6 dual stack

Protocol emulation on RIPv2, RIPng, OSPFv2, OSPFv3, ISISv4, ISISv6, BGP4, PPPoE Client, DHCP Client, IGMPv2, IGMPv3, GMRP, 802.1x, LDP, 802.3ah Layer 4-7 Protocol Emulation Data Each port supports wire-speed traffic generation

TCP connections per second: 2 Million

TCP concurrent connections: 32 Million

Support HTTP

Support FTP Support comprehensive multilayer testing though Layer 2 ~ 7

Software Support TeleExplorer test system

TeleAPP - Test suit of RFC 2544/RFC 2889/RFC3918

Chassis Available TestStorm200

Others Easy-to-use graphical user interface

Support TCL API for customizing tests


Company Contact:


  • Phone: 86-10-82349338

  • Address: 101, Building No.5, No.8 Chuangye Road, Haidian District, Beijing , Beijing , China

  • Email: Email


Published date: July 10, 2018

  • Business Description: Beijing Xinertel Technology Co., Ltd. was established in 2007 - As a high-tech enterprise we have been constantly concentrating on the field of network communications testing and committed to providing high-quality testing equipment with attractive price, customized test solutions and excellent services.

    We commit ourselves to supply our customers with more benefits by providing cost-effective products, personalized services and shorter delivery.

    Since established in 2007, we constantly focus on the field of network communications testing with attractive price, high quality and excellent services.

    All our technical backbone staff have more than 10 years' experience in communications test products design, implementation and verification.

    As a result of continually pursuing advances in the testing technology, we have delivered iTester series, BigTao series and Tlite network tester in succession.
