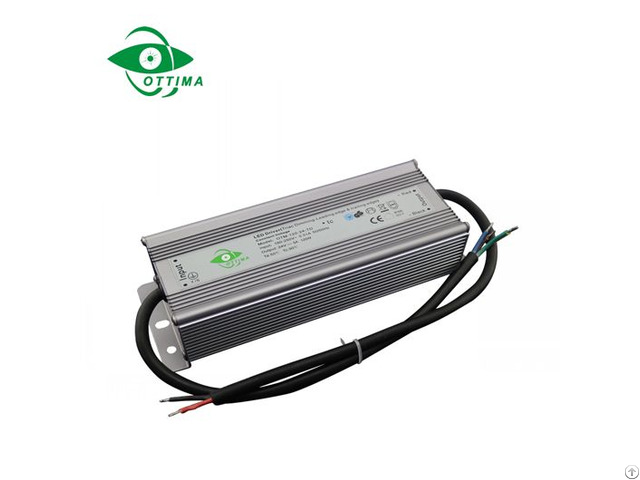

12v 80w Triac Dimmable Led Driver - China

12v 80w triac dimmable led driver waterproof IP67 waterproof led driver supplier

12v 80w ip67 waterproof electronic power supply triac dimming 5 years warranty for outdoor lighting usage

12vdc constant voltage triac dimmable led driver 80W waterproof IP67

triac led driver Specification:

Part Number OTM-TD80-PHW12

Power 80W

Input voltage 100-277Vac

Output voltage 12Vdc

Output current 6.67A

Dimmable Triac dimmable

IP grade IP67

PF >0.95

Dimension 230*70*46mm

Weight 1.1kgs

Pcs/carton 10pcs/carton

Certificate CE, RoHS, SAA, ETL, CB

Warranty 5 years warranty

Label We can print your logo free on the led driver

Why choose OTTIMA Led Driver?

1 - various different kind LED driver for your choice.

We can supply constant voltage led driver power supply, constant current led driver, waterproof led driver, non waterproof LED driver, triac dimmable, 0/1-10v/PWM dimmable, DALI dimmable, DALI+push, 5 in 1 dimmable.

2 - more than 15 years export experience of LED driver/power supply.

3 - design the LED driver according to customer’s need.

4 - supply bom list, CAD drawing, circuit drawing, install connect drawing.

5 - laser print your logo and label layout on the LED driver.

6 - Help customer design their catalogue and promotion poster.

Feature of OTTIMA Triac dimmable led driver

1 - 100-277Vac universal input range, however, most company can only do 90-130vac or 180-240vac.

2 - PF>0.95

3 - Dimming range: 0-100%

4 - High efficiency

5 - Load power requirement 0-100%

6 - 5 years warranty

7 - CE, RoHS, SAA, CB, ETL listed

8 - With PWM output

9 - Power up to 300W OTTIMA is a high-tech enterprise specializing in the R&D, manufacture and export of DALI LED driver, 5 in 1 dimmable led driver and Junction box LED driver supply.

Company Contact:

• Posted By: Ottima Technology Co.,ltd

• Phone: 86 371 68905280

• Address: Floor 4th,Building 1, Puhua Science & Technology Park, Industrial Park Road,Dalang Street,Longhu, Shenzhen , Guangdong , China

• Email:

• Business Description: OTTIMA TECHNOLOGY CO., LTD (refer to “OTTIMA” as following) is a worldwide supplier of LED Driver established in 2006 - OTTIMA is a high-tech enterprise specializing in the R&D, manufacture and export of LED Driver/LED power supply.

  Our factory covers 4,300 square meters and with 150 workers utilizing 6 production lines.

  We have 6 R&D staffs with 5-8 years experience in LED Driver.

  Our products are CE（TUV）,RoHs, SAA, C-tick,RCM, FCC and ETL approved.

  In addition, our quality can guarantee 3-5 years warranty and repair&maintenance rate below 0.3% .

  Our LED Drivers include constant current LED Driver, constant voltage LED Driver, waterproof LED Driver, triac dimmable LED Driver, ultra-thin LED Driver ,0-10V/1-10V/PWM dimmable LED Driver, DALI LED Driver, etc.

  Our company has advanced production equipment and testing equipment, such as wave soldering, ageing test equipment and SMD machine.

  We strictly carry out ISO9001 quality management system standard to ensure product quality.

  Since 2006, by virtue of strong development capability and excellent product quality, we have achieved a high reputation both at home and abroad market.

  We will continue to produce more competitive, environmentally friendly and energy saving products to meet customers' needs and create win-win business with you!
