Astm A312 Seamless Stainless Steel Tubinghigh Temperature Service Application - China

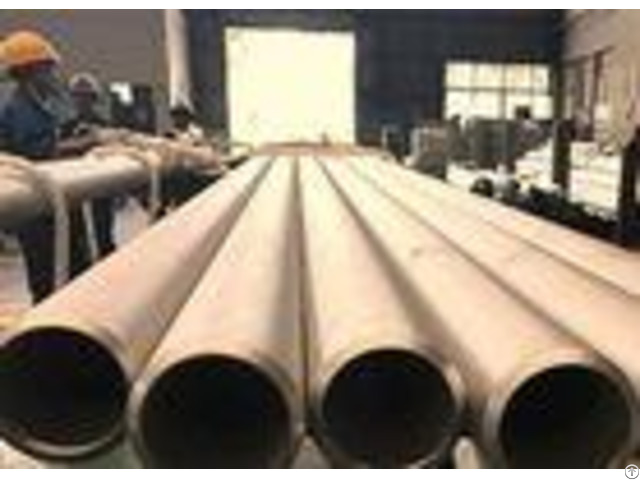

ASTM A312 Seamless Stainless Steel Tubing High Temperature Service Application Since 2008, XOOS offers a wide selection of ASTM A312 seamless steel pipes, and a diverse range of finish options to meet the performance and appearance requirements for most applications.

1 - Standards: ASTM A312 Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes 2 - Application: Refineries; Nuclear Plant; Aerospace Industry; Chemical Fertilizer; Petrochemicals' Oli & Gas and etc.

3 - Steel pipes No.

of main production: TP201, TP304, TP304L, TP316L, TP321, TP347, N08904 4 - Materials & Manufacture Pipe shall be either hot finished or cold finished; The pipe shall be free of scale and contaminating exogenous iron particles.

Pickling, blasting, or surface finishing is not mandatory when pipe is bright annealed.

5 - Chemical Requirements - - - - Chemical Composition % | Grade | UNS Designation | C | Mn | P | S | Si | Cr | Ni | Mo | Other | TP201 | S20100 | 0.15 | 5.5-7.5 | 0.06 | 0.03 | 1 | 16.0-18.0 | 3.5-5.5 | | N: 0.25 | TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | | | TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | | | TP304H | S30409 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | | | TP316 | S31600 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | | TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | | TP316H | S31609 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | | TP321 | S32100 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | | N: 0.1 | TP321H | S32109 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | | N: 0.1 Ti: 4(C+N) min; 0.70 max | TP347 | S34700 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-13.0 | | | TP347H | S34709 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-13.0 | | | | N08904 | 0.02 | 2 | 0.04 | 0.03 | 1 | 19.0-23.0 | 23.0-28.0 | 4.0-5.0 | N: 0.1 Cu: 1.00-2.00 | - - - - 6 - Tensile Requirements - - - - Tensile Requirements | Grade | UNS Designation | Tensile Strength, min ksi (Mpa) | Yield Strength, min ksi(Mpa) | TP201 | S20100 | 75 (515) | 38 (260) | TP304 | S30400 | 75 (515) | 30 (205) | TP304L | S30403 | 70 (485) | 25 (170) | TP304H | S30409 | 75 (515) | 30 (205) | TP316 | S31600 | 75 (515) | 30 (205) | TP316L | S31603 | 70 (485) | 25 (170) | TP316H | S31609 | 75 (515) | 30 (205) | TP321 3/8'' | S32100 | 75 (515) | 30 (205) | TP321 3/8'' | 70 (485) | 25 (170) | TP321H 3/8'' | S32109 | 75 (515) | 30 (205) | TP321H 3/8'' | 70 (480) | 25 (170) | TP347 | S34700 | 75 (515) | 30 (205) | TP347H | S34709 | 75 (515) | 30 (205) | | N08904 | 71 (490) | 31 (215) | - - - - 7 - Available Size Range - - - - OD | Thickness | mm | inch | mm | SCH | 10.3~914 | 1/8~36 | 0.5~70 | All | *If the steel grades and size you are looking for are not listed above, please contact us for further information.

| - - - -
