Handheld Printer Supplier - China

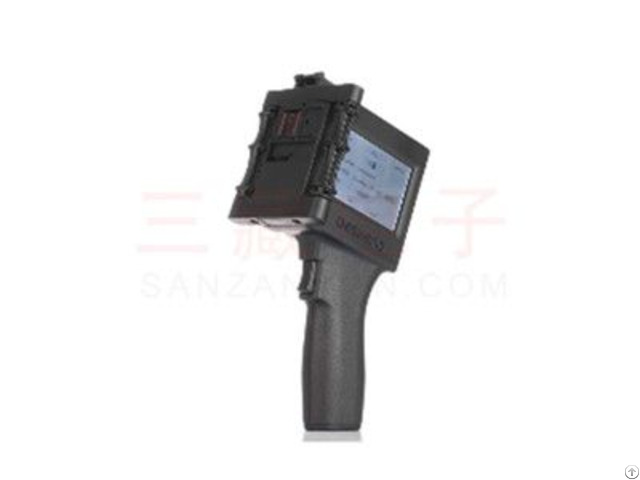

T1000 Handheld Printer Handheld Printer supplier Introduction of operation

1 - how to install the ink cartridge

Please turn off the handheld printer while installing the ink cartridge.

Press the side switch and then insert to the slot.

2 - Power switch 3 - Editing interface

“LOCK”: In the locked state, content cannot be dragged.

“DRAG”: Click "LOCK" to switch to "DRAG" state, drag content to any position.

To adjust the font size to the finest, add up to seven lines.

“+ADD”: Add text, picture, time, etc

“EDIT”: Click your edit text first, then click the “EDIT”, will enter to the editing interface.

You can adjust the size, Pitch, font format, and dot matrix.

“DEL”: Delete current text.

“SET”: Set the system.

Generally do not need to change settings, control printing standard - quality - black, look at the individual needs adjustment.

“Manage”: To create a new template to save the information content.

“Clean NOZZ”: Cleaning nozzle function.

4 - Setting

1) “Clean NOZZ”: Click interface "cleaner nozzle" to achieve cleaner nozzle function.

2) Click “SET” button, enter the setting backstage interface.

Prejet: “Close” means Turn off the quick cleaning function.

“No move” means Just press the Print button before printing to quickly clean the nozzle function.

5 - Print accuracy adjustment

Print CTL: “Standard” means 300dpi, “Quality” means 600dpi, “Bold” means bold the font.

6 - Printing direction adjustment

“L->R”means printing from left to right.

“R->L” means printing from right to left.

7 - Delay setting

Adjusting the print delay interval, the smaller the value the shorter the delay.

8 - Time setting

Click “Set Time” button, can reset the time of system.

9 - Language setting

Language includes EN/S CN/ T CN/ Czech.

(Updating the language) 10 - Portable Handheld Printer Manage information

Click “manage” button, you can store different content information templates.

You can switch to your content at any time.

“New” means you can set up a new template, typing the information you want to print.

It will save automatically.

“copy” means copy a same template

“Rename” means rename the template.

“DEL” means delete the file.

“Select” means select your file.
