Seamless Stainless Steel Round Pipeastm A312 Tp347h For High Temperature Service - China

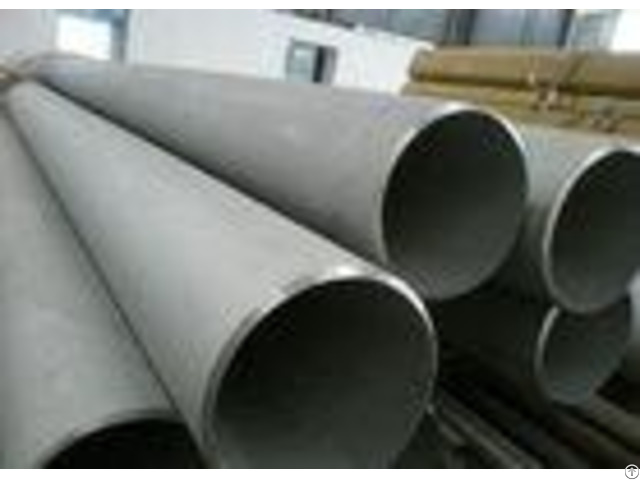

Seamless Stainless Steel Round Pipe ASTM A312 TP347H For High Temperature Service A pipe without a seam or weld is known as seamless pipe.

347H seamless pipe can withstand high mechanical stress and high pressure; can work in high temperatures and corrosive environments.

Stainless steel seamless pipe is formed by drawing a solid metal billet over a piercing rod to create a hollow tube.

Seamless pipe is then processed and finished as per dimension standard ANSI B36.10 and ANSI B36.19 and B36.19M in different wall thickness and sizes ranging from SCH 10 to XXS.

347H seamless pipes have varied applications in the oil and gas, chemical, pharmaceutical, fertilizer, argo-chemical, aerospace, desalination, food and beverage, sugar, distillery, power generation, cement, petroleum refinery, mechanical and structural, food processing, etc.

1 - Standards: ASTM A312 Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes 2 - Application: Refineries; Nuclear Plant; Aerospace Industry; Chemical Fertilizer; Petrochemicals' Oli & Gas and etc.

3 - Materials & Manufacture Pipe shall be either hot finished or cold finished; The pipe shall be free of scale and contaminating exogenous iron particles.

Pickling, blasting, or surface finishing is not mandatory when pipe is bright annealed.

4 - Chemical Requirements - - - - Chemical Composition % | Grade | UNS Designation | C | Mn | P | S | Si | Cr | Ni | Mo | Other | TP347H | S34709 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-13.0 | | | - - - - 5 - Tensile Requirements - - - - Tensile Requirements | Grade | UNS Designation | Tensile Strength, min ksi (Mpa) | Yield Strength, min ksi(Mpa) | TP347H | S34709 | 75 (515) | 30 (205) | - - - - 6 - Available Size Range - - - - OD | Thickness | mm | inch | mm | SCH | 10.3~914 | 1/8~36 | 0.5~70 | All | *If the steel grades and size you are looking for are not listed above, please contact us for further information.

| - - - -
